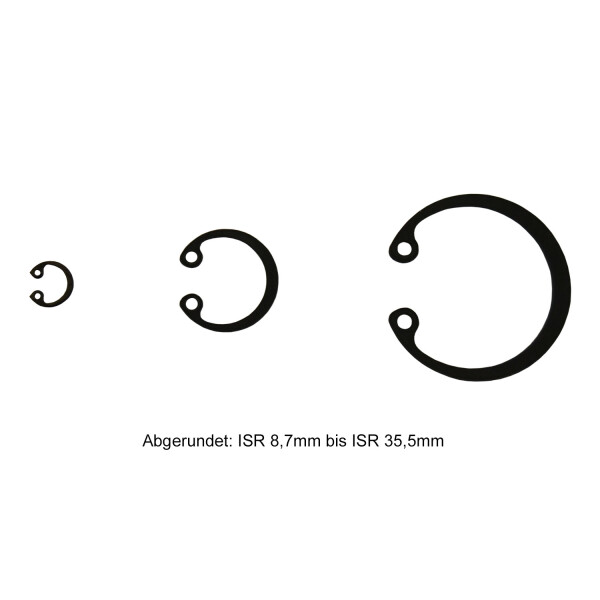

Innensicherungsring DIN 472 aus Federstahl mit Außenmass darstellung mit der öffnung nach links

Technische Zeichung eines Innensicherungsrings Abmass d1 d2 d3 d5 b und S

ISR 16,2mm

Artikelnummer: 30181200108
Kategorie: Sicherungsringe
Hersteller: Weisenburger Pro-Parts UG

Sicherungsring DIN 472 Innensicherungsring für Bohrungen 8,7mm bis 209,5mm
Werkstoff Norm:		Federstahl EN 10132 – (DIN 17222)
Werkstoffband:		C75 S
Härtegrad:		HV 470 – 580, HRC 47 – 54
Oberflächenbeschaffenheit:		brüniert und geölt
Ausführung:		ISR 16,2mm
Durchmesser d1 Ø in mm:		15mm
Außendurchmesser d3 Ø in mm:		16,2mm
d2 in mm:		15,7mm
Bandbreite b:		2,0mm
Wandstärke S in mm:		1,00mm ±0,06mm
Abmaß d5 in mm:		1,7mm
Norm:		DIN 472

Ausführung
mind. Menge

€ 0,32

inkl. 19% USt. , zzgl.

Sofort verfügbar
Lieferzeit: 1 - 2 Werktage (DE - Ausland abweichend)

Beschreibung
Bewertungen
Frage zum Artikel

Artikelnummer:	Ausführung:	Durchmesser d1 Ø in mm:	Außendurchmesser d3 Ø in mm:	d2 in mm:	Bandbreite b:	Wandstärke S in mm:	Abmaß d5 in mm:
30181200101	ISR 8,7mm	8mm	8,7mm	8,4mm	1,1mm	0,80mm ±0,05mm	1mm
30181200102	ISR 9,8mm	9mm	9,8mm	9,4mm	1,3mm	0,80mm ±0,05mm	1mm
30181200103	ISR 10,8mm	10mm	10,8mm	10,4mm	1,4mm	1,00mm ±0,06mm	1,2mm
30181200104	ISR 11,8mm	11mm	11,8mm	11,4mm	1,5mm	1,00mm ±0,06mm	1,2mm
30181200105	ISR 13,0mm	12mm	13,0mm	12,5mm	1,7mm	1,00mm ±0,06mm	1,5mm
30181200106	ISR 14,1mm	13mm	14,1mm	13,6mm	1,8mm	1,00mm ±0,06mm	1,5mm
30181200107	ISR 15,1mm	14mm	15,1mm	14,6mm	1,9mm	1,00mm ±0,06mm	1,7mm
30181200108	ISR 16,2mm	15mm	16,2mm	15,7mm	2,0mm	1,00mm ±0,06mm	1,7mm
30181200109	ISR 17,3mm	16mm	17,3mm	16,8mm	2,0mm	1,00mm ±0,06mm	1,7mm
30181200110	ISR 18,3mm	17mm	18,3mm	17,8mm	2,1mm	1,00mm ±0,06mm	1,7mm
30181200111	ISR 19,5mm	18mm	19,5mm	19,0mm	2,2mm	1,00mm ±0,06mm	2,0mm
30181200112	ISR 20,5mm	19mm	20,5mm	20,0mm	2,2mm	1,00mm ±0,06mm	2,0mm
30181200113	ISR 21,5mm	20mm	21,5mm	21,0mm	2,3mm	1,00mm ±0,06mm	2,0mm
30181200114	ISR 22,5mm	21mm	22,5mm	22,0mm	2,4mm	1,00mm ±0,06mm	2,0mm
30181200115	ISR 23,5mm	22mm	23,5mm	23,0mm	2,5mm	1,00mm ±0,06mm	2,0mm
30181200116	ISR 25,9mm	24mm	25,9mm	25,2mm	2,6mm	1,20mm ±0,06mm	2,0mm
30181200117	ISR 26,9mm	25mm	26,9mm	26,2mm	2,7mm	1,20mm ±0,06mm	2,0mm
30181200118	ISR 27,9mm	26mm	27,9mm	27,2mm	2,8mm	1,20mm ±0,06mm	2,0mm
30181200119	ISR 29,1mm	27mm	29,1mm	28,4mm	2,9mm	1,20mm ±0,06mm	2,0mm
30181200120	ISR 30,1mm	28mm	30,1mm	29,4mm	2,9mm	1,20mm ±0,06mm	2,0mm
30181200121	ISR 31,1mm	29mm	31,1mm	30,4mm	30,mm	1,20mm ±0,06mm	2,0mm
30181200122	ISR 32,1mm	30mm	32,1mm	31,4mm	3,0mm	1,20mm ±0,06mm	2,0mm
30181200123	ISR 33,4mm	31mm	33,4mm	32,7mm	3,2mm	1,20mm ±0,06mm	2,5mm
30181200124	ISR 34,4mm	32mm	34,4mm	33,7mm	3,2mm	1,20mm ±0,06mm	2,5mm
30181200125	ISR 35,5mm	33mm	35,5mm	34,7mm	3,3mm	1,20mm ±0,06mm	2,5mm
30181200126	ISR 36,5mm	34mm	36,5mm	35,7mm	3,3mm	1,50mm ±0,06mm	2,5mm
30181200127	ISR 37,8mm	35mm	37,8mm	37,0mm	3,4mm	1,50mm ±0,06mm	2,5mm
30181200128	ISR 38,8mm	36mm	38,8mm	38,0mm	3,5mm	1,50mm ±0,06mm	2,5mm
30181200129	ISR 39,8mm	37mm	39,8mm	39,0mm	3,6mm	1,50mm ±0,06mm	2,5mm
30181200130	ISR 40,8mm	38mm	40,8mm	40,0mm	3,7mm	1,50mm ±0,06mm	2,5mm
30181200131	ISR 43,5mm	40mm	43,5mm	42,5mm	3,9mm	1,75mm ±0,06mm	2,5mm
30181200132	ISR 44,5mm	41mm	44,5mm	43,5mm	4,0mm	1,75mm ±0,06mm	2,5mm
30181200133	ISR 45,5mm	42mm	45,5mm	44,5mm	4,1mm	1,75mm ±0,06mm	2,5mm
30181200134	ISR 47,5mm	44mm	47,5mm	46,5mm	4,2mm	1,75mm ±0,06mm	2,5mm
30181200135	ISR 48,5mm	45mm	48,5mm	47,5mm	4,3mm	1,75mm ±0,06mm	2,5mm
30181200136	ISR 49,5mm	46mm	49,5mm	48,5mm	4,4mm	1,75mm ±0,06mm	2,5mm
30181200137	ISR 50,5mm	47mm	50,5mm	49,5mm	4,4mm	1,75mm ±0,06mm	2,5mm
30181200138	ISR 51,5mm	48mm	51,5mm	50,5mm	4,5mm	1,75mm ±0,06mm	2,5mm
30181200139	ISR 54,2mm	50mm	54,2mm	53,0mm	4,6mm	2,00mm ±0,07mm	2,5mm
30181200140	ISR 56,2mm	52mm	56,2mm	55,0mm	4,7mm	2,00mm ±0,07mm	2,5mm
30181200141	ISR 59,2mm	55mm	59,2mm	58,0mm	5,0mm	2,00mm ±0,07mm	2,5mm
30181200142	ISR 60,2mm	56mm	60,2mm	59,0mm	5,1mm	2,00mm ±0,07mm	2,5mm
30181200143	ISR 62,2mm	58mm	62,2mm	61,0mm	5,2mm	2,00mm ±0,07mm	2,5mm
30181200144	ISR 64,2mm	60mm	64,2mm	63,0mm	5,4mm	2,00mm ±0,07mm	2,5mm
30181200145	ISR 66,2mm	62mm	66,2mm	65,0mm	5,5mm	2,00mm ±0,07mm	2,5mm
30181200146	ISR 67,2mm	63mm	67,2mm	66,0mm	5,6mm	2,00mm ±0,07mm	2,5mm
30181200147	ISR 69,2mm	65mm	69,2mm	68,0mm	5,8mm	2,50mm ±0,07mm	3,0mm
30181200148	ISR 72,5mm	68mm	72,5mm	71,0mm	6,1mm	2,50mm ±0,07mm	3,0mm
30181200149	ISR 74,5mm	70mm	74,5mm	73,0mm	6,2mm	2,50mm ±0,07mm	3,0mm
30181200150	ISR 76,5mm	72mm	76,5mm	75,0mm	6,4mm	2,50mm ±0,07mm	3,0mm
30181200151	ISR 79,5mm	75mm	79,5mm	78,0mm	6,6mm	2,50mm ±0,07mm	3,0mm
30181200152	ISR 82,5mm	78mm	82,5mm	81,0mm	6,8mm	2,50mm ±0,07mm	3,0mm
30181200153	ISR 85,5mm	80mm	85,5mm	83,5mm	7,0mm	2,50mm ±0,07mm	3,0mm
30181200154	ISR 87,5mm	82mm	87,5mm	85,5mm	7,0mm	2,50mm ±0,07mm	3,0mm
30181200155	ISR 90,5mm	85mm	90,5mm	88,5mm	7,2mm	3,00mm ±0,08mm	3,5mm
30181200156	ISR 95,5mm	90mm	95,5mm	93,5mm	7,6mm	3,00mm ±0,08mm	3,5mm
30181200157	ISR 97,5mm	92mm	97,5mm	95,5mm	7,8mm	3,00mm ±0,08mm	3,5mm
30181200158	ISR 100,5mm	95mm	100,5mm	98,5mm	8,1mm	3,00mm ±0,08mm	3,5mm
30181200159	ISR 103,5mm	98mm	103,5mm	101,5mm	8,3mm	3,00mm ±0,08mm	3,5mm
30181200160	ISR 105,5mm	100mm	105,5mm	103,5mm	8,4mm	3,00mm ±0,08mm	3,5mm
30181200161	ISR 108,0mm	102mm	108,0mm	106,0mm	8,5mm	4,00mm ±0,10mm	3,5mm
30181200162	ISR 112,0mm	105mm	112,0mm	109,0mm	8,7mm	4,00mm ±0,10mm	3,5mm
30181200163	ISR 117,0mm	110mm	117,0mm	114,0mm	9,0mm	4,00mm ±0,10mm	3,5mm
30181200164	ISR 119,0mm	112mm	119,0mm	116,0mm	9,1mm	4,00mm ±0,10mm	3,5mm
30181200165	ISR 122,0mm	115mm	122,0mm	119,0mm	9,3mm	4,00mm ±0,10mm	3,5mm
30181200166	ISR 127,0mm	120mm	127,0mm	124,0mm	9,7mm	4,00mm ±0,10mm	3,5mm
30181200167	ISR 132,0mm	125mm	132,0mm	129,0mm	10,0mm	4,00mm ±0,10mm	4,0mm
30181200168	ISR 137,0mm	130mm	137,0mm	134,0mm	10,2mm	4,00mm ±0,10mm	4,0mm
30181200169	ISR 142,0mm	135mm	142,0mm	139,0mm	10,5mm	4,00mm ±0,10mm	4,0mm
30181200170	ISR 147,0mm	140mm	147,0mm	144,0mm	10,7mm	4,00mm ±0,10mm	4,0mm
30181200171	ISR 152,0mm	145mm	152,0mm	149,0mm	10,9mm	4,00mm ±0,10mm	4,0mm
30181200172	ISR 158,0mm	150mm	158,0mm	155,0mm	11,2mm	4,00mm ±0,10mm	4,0mm
30181200173	ISR 164,0mm	155mm	164,0mm	160,0mm	11,4mm	4,00mm ±0,10mm	4,0mm
30181200174	ISR 169,0mm	160mm	169,0mm	165,0mm	11,6mm	4,00mm ±0,10mm	4,0mm
30181200175	ISR 174,5mm	165mm	174,5mm	170,0mm	11,8mm	4,00mm ±0,10mm	4,0mm
30181200176	ISR 179,5mm	170mm	179,5mm	175,0mm	12,2mm	4,00mm ±0,10mm	4,0mm
30181200177	ISR 184,5mm	175mm	184,5mm	180,0mm	12,7mm	4,00mm ±0,10mm	4,0mm
30181200178	ISR 189,5mm	180mm	189,5mm	185,0mm	13,2mm	4,00mm ±0,10mm	4,0mm
30181200179	ISR 194,5mm	185mm	194,5mm	190,0mm	13,7mm	4,00mm ±0,10mm	4,0mm
30181200180	ISR 199,5mm	190mm	199,5mm	195,0mm	13,8mm	4,00mm ±0,10mm	4,0mm
30181200181	ISR 204,5mm	195mm	204,5mm	200,0mm	13,8mm	4,00mm ±0,10mm	4,0mm
30181200182	ISR 209,5mm	200mm	209,5mm	205,0mm	14,0mm	4,00mm ±0,10mm	4,0mm
