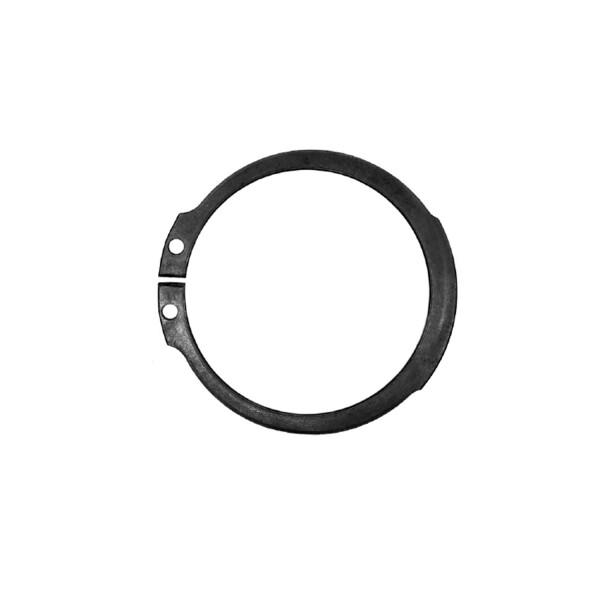

Außensicherungsring wird mit der kleinen öffnung nach links dargestelt und ist sehr kompakt im Aussehen

Technische Zeichnung eines Ausßensicherungsrings DIN 471 mit den abmassen d1 d2 d3 d5 b und S

ASR 15,7mm

Artikelnummer: 30181200565
Kategorie: Sicherungsringe
Hersteller: Weisenburger Pro-Parts UG

Außensicherungsring mit Innendurchmesser 2,7mm bis 190,5mm DIN 471
Werkstoff Norm:		Federstahl EN 10132 – 1/4 (DIN 17222)
Werkstoffband:		C60 S
Härtegrad:		HV 470 – 580, HRC 47 – 54
Oberflächenbeschaffenheit:		brüniert und geölt
Ausführung:		ASR 15,7mm
Durchmesser d1 Ø in mm:		17mm
Innendurchmesser d3 Ø in mm:		15,7mm
d2 in mm:		16,2mm
Bandbreite b:		2,3mm
Wandstärke S in mm:		1,0mm ±0,06mm
Abmaß d5 in mm:		1,7mm
Norm:		DIN 471

Ausführung
mind. Menge

€ 0,48

inkl. 19% USt. , zzgl.

Sofort verfügbar
Lieferzeit: 1 - 2 Werktage (DE - Ausland abweichend)

Beschreibung
Bewertungen
Frage zum Artikel

Artikelnummer:	Ausführung:	Durchmesser d1 Ø in mm:	Innendurchmesser d3 Ø in mm:	d2 in mm:	Bandbreite b:	Wandstärke S in mm:	Abmaß d5 in mm:
30181200551	ASR 2,7mm	3mm	2,7mm	2,8mm	0,8mm	0,4mm ±0,05mm	1mm
30181200552	ASR 3,7mm	4mm	3,7mm	3,8mm	0,9mm	0,4mm ±0,05mm	1mm
30181200553	ASR 4,7mm	5mm	4,7mm	4,8mm	1,1mm	0,6mm ±0,05mm	1mm
30181200554	ASR 5,6mm	6mm	5,6mm	5,7mm	1,3mm	0,7mm ±0,05mm	1,2mm
30181200555	ASR 6,5mm	7mm	6,5mm	6,7mm	1,4mm	0,8mm ±0,05mm	1,2mm
30181200556	ASR 7,4mm	8mm	7,4mm	7,6mm	1,5mm	0,8mm ±0,05mm	1,2mm
30181200557	ASR 8,4mm	9mm	8,4mm	8,6mm	1,7mm	1,0mm ±0,06mm	1,2mm
30181200558	ASR 9,3mm	10mm	9,3mm	9,6mm	1,8mm	1,0mm ±0,06mm	1,5mm
30181200559	ASR 10,2mm	11mm	10,2mm	10,5mm	1,8mm	1,0mm ±0,06mm	1,5mm
30181200560	ASR 11,0mm	12mm	11,0mm	11,5mm	1,8mm	1,0mm ±0,06mm	1,7mm
30181200561	ASR 11,9mm	13mm	11,9mm	12,4mm	2,0mm	1,0mm ±0,06mm	1,7mm
30181200562	ASR 12,9mm	14mm	12,9mm	13,4mm	2,1mm	1,0mm ±0,06mm	1,7mm
30181200563	ASR 13,8mm	15mm	13,8mm	14,3mm	2,2mm	1,0mm ±0,06mm	1,7mm
30181200564	ASR 14,7mm	16mm	14,7mm	15,2mm	2,2mm	1,0mm ±0,06mm	1,7mm
30181200565	ASR 15,7mm	17mm	15,7mm	16,2mm	2,3mm	1,0mm ±0,06mm	1,7mm
30181200566	ASR 16,5mm	18mm	16,5mm	17,0mm	2,4mm	1,20mm ±0,06mm	2,0mm
30181200567	ASR 17,5mm	19mm	17,5mm	18,0mm	2,5mm	1,20mm ±0,06mm	2,0mm
30181200568	ASR 18,5mm	20mm	18,5mm	19,0mm	2,6mm	1,20mm ±0,06mm	2,0mm
30181200569	ASR 19,5mm	21mm	19,5mm	20,0mm	2,7mm	1,20mm ±0,06mm	2,0mm
30181200570	ASR 20,5mm	22mm	20,5mm	21,0mm	2,8mm	1,20mm ±0,06mm	2,0mm
30181200571	ASR 22,2mm	24mm	22,2mm	22,9mm	3,0mm	1,20mm ±0,06mm	2,0mm
30181200572	ASR 23,2mm	25mm	23,2mm	23,9mm	3,0mm	1,20mm ±0,06mm	2,0mm
30181200573	ASR 24,2mm	26mm	24,2mm	24,9mm	3,1mm	1,20mm ±0,06mm	2,0mm
30181200574	ASR 24,9mm	27mm	24,9mm	25,6mm	3,1mm	1,20mm ±0,06mm	2,0mm
30181200575	ASR 25,9mm	28mm	25,9mm	26,6mm	3,2mm	1,50mm ±0,06mm	2,0mm
30181200576	ASR 26,9mm	29mm	26,9mm	27,6mm	3,4mm	1,50mm ±0,06mm	2,0mm
30181200577	ASR 27,9mm	30mm	27,9mm	28,6mm	3,5mm	1,50mm ±0,06mm	2,0mm
30181200578	ASR 29,6mm	32mm	29,6mm	30,3mm	3,6mm	1,50mm ±0,06mm	2,5mm
30181200579	ASR 30,5mm	33mm	30,5mm	31,3mm	3,7mm	1,50mm ±0,06mm	2,5mm
30181200580	ASR 31,5mm	34mm	31,5mm	32,3mm	3,8mm	1,50mm ±0,06mm	2,5mm
30181200581	ASR 32,2mm	35mm	32,2mm	33,0mm	3,9mm	1,50mm ±0,06mm	2,5mm
30181200582	ASR 33,2mm	36mm	33,2mm	34,0mm	4,0mm	1,75mm ±0,06mm	2,5mm
30181200583	ASR 35,2mm	38mm	35,2mm	36,0mm	4,2mm	1,75mm ±0,06mm	2,5mm
30181200584	ASR 36,5mm	40mm	36,5mm	37,5mm	4,4mm	1,75mm ±0,06mm	2,5mm
30181200585	ASR 38,5mm	42mm	38,5mm	39,5mm	4,5mm	1,75mm ±0,06mm	2,5mm
30181200586	ASR 40,5mm	44mm	40,5mm	41,5mm	4,6mm	1,75mm ±0,06mm	2,5mm
30181200587	ASR 41,5mm	45mm	41,5mm	42,5mm	4,7mm	1,75mm ±0,06mm	2,5mm
30181200588	ASR 42,5mm	46mm	42,5mm	43,5mm	4,8mm	1,75mm ±0,06mm	2,5mm
30181200589	ASR 43,5mm	47mm	43,5mm	44,5mm	4,9mm	1,75mm ±0,06mm	2,5mm
30181200590	ASR 44,5mm	48mm	44,5mm	45,5mm	5,0mm	1,75mm ±0,06mm	2,5mm
30181200591	ASR 45,8mm	50mm	45,8mm	47,0mm	5,1mm	2,0mm ±0,07mm	2,5mm
30181200592	ASR 47,8mm	52mm	47,8mm	49,0mm	5,2mm	2,0mm ±0,07mm	2,5mm
30181200593	ASR 50,8mm	55mm	50,8mm	52,0mm	5,4mm	2,0mm ±0,07mm	2,5mm
30181200594	ASR 51,8mm	56mm	51,8mm	53,0mm	5,5mm	2,0mm ±0,07mm	2,5mm
30181200595	ASR 53,8mm	58mm	53,8mm	55,0mm	5,6mm	2,0mm ±0,07mm	2,5mm
30181200596	ASR 55,8mm	60mm	55,8mm	57,0mm	5,8mm	2,0mm ±0,07mm	2,5mm
30181200597	ASR 57,8mm	62mm	57,8mm	59,0mm	6,0mm	2,0mm ±0,07mm	2,5mm
30181200598	ASR 58,8mm	63mm	58,8mm	60,0mm	6,2mm	2,0mm ±0,07mm	2,5mm
30181200599	ASR 60,8mm	65mm	60,8mm	62,0mm	6,3mm	2,5mm ±0,07mm	3,0mm
30181200600	ASR 63,5mm	68mm	63,5mm	65,0mm	6,5mm	2,5mm ±0,07mm	3,0mm
30181200601	ASR 65,5mm	70mm	65,5mm	67,0mm	6,6mm	2,5mm ±0,07mm	3,0mm
30181200602	ASR 67,5mm	72mm	67,5mm	69,0mm	6,8mm	2,5mm ±0,07mm	3,0mm
30181200603	ASR 70,5mm	75mm	70,5mm	72,0mm	7,0mm	2,5mm ±0,07mm	3,0mm
30181200604	ASR 73,5mm	78mm	73,5mm	75,0mm	7,3mm	2,5mm ±0,07mm	3,0mm
30181200605	ASR 74,5mm	80mm	74,5mm	76,5mm	7,4mm	2,5mm ±0,07mm	3,0mm
30181200606	ASR 76,5mm	82mm	76,5mm	78,5mm	7,6mm	2,5mm ±0,07mm	3,0mm
30181200607	ASR 79,5mm	85mm	79,5mm	81,5mm	7,8mm	3,0mm ±0,08mm	3,5mm
30181200608	ASR 84,5mm	90mm	84,5mm	86,5mm	8,2mm	3,0mm ±0,08mm	3,5mm
30181200609	ASR 86,5mm	92mm	86,5mm	88,5mm	8,4mm	3,0mm ±0,08mm	3,5mm
30181200610	ASR 89,5mm	95mm	89,5mm	91,5mm	8,6mm	3,0mm ±0,08mm	3,5mm
30181200611	ASR 94,5mm	100mm	94,5mm	96,5mm	9,0mm	3,0mm ±0,08mm	3,5mm
30181200612	ASR 98,0mm	105mm	98,0mm	101,0mm	9,3mm	4,0mm ±0,10mm	3,5mm
30181200613	ASR 103,0mm	110mm	103,0mm	106,0mm	9,6mm	4,0mm ±0,10mm	3,5mm
30181200614	ASR 108,0mm	115mm	108,0mm	111,0mm	9,8mm	4,0mm ±0,10mm	3,5mm
30181200615	ASR 113,0mm	120mm	113,0mm	116,0mm	10,2mm	4,0mm ±0,10mm	3,5mm
30181200616	ASR 118,0mm	125mm	118,0mm	121,0mm	10,4mm	4,0mm ±0,10mm	4,0mm
30181200617	ASR 123,0mm	130mm	123,0mm	126,0mm	10,7mm	4,0mm ±0,10mm	4,0mm
30181200618	ASR 128,0mm	135mm	128,0mm	131,0mm	11,0mm	4,0mm ±0,10mm	4,0mm
30181200619	ASR 133,0mm	140mm	133,0mm	136,0mm	11,2mm	4,0mm ±0,10mm	4,0mm
30181200620	ASR 138,0mm	145mm	138,0mm	141,0mm	11,5mm	4,0mm ±0,10mm	4,0mm
30181200621	ASR 142,0mm	150mm	142,0mm	145,0mm	11,8mm	4,0mm ±0,10mm	4,0mm
30181200622	ASR 151,0mm	160mm	151,0mm	155,0mm	12,2mm	4,0mm ±0,10mm	4,0mm
30181200623	ASR 160,5mm	170mm	160,5mm	165,0mm	12,9mm	4,0mm ±0,10mm	4,0mm
30181200624	ASR 165,5mm	175mm	165,5mm	170,0mm	12,9mm	4,0mm ±0,10mm	4,0mm
30181200625	ASR 170,4mm	180mm	170,4mm	175,0mm	13,5mm	4,0mm ±0,10mm	4,0mm
30181200626	ASR 175,5mm	185mm	175,5mm	180,0mm	13,5mm	4,0mm ±0,10mm	4,0mm
30181200627	ASR 180,5mm	190mm	180,5mm	185,0mm	14,0mm	4,0mm ±0,10mm	4,0mm
30181200628	ASR 185,5mm	195mm	185,5mm	190,0mm	14,0mm	4,0mm ±0,10mm	4,0mm
30181200629	ASR 190,5mm	200mm	190,5mm	195,00mm	14,0mm	4,0mm ±0,10mm	4,0mm
