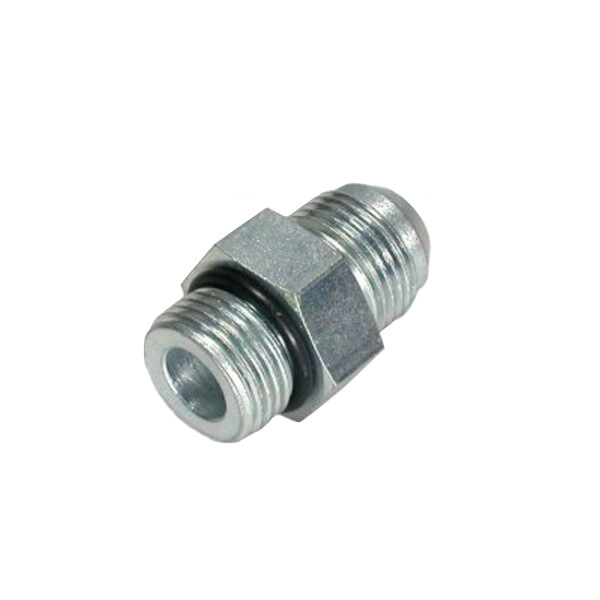

Gerade Einschraubverschraubung mit UN-UNF Anschlussgewinde und Einschraubgewinde diagonal dargestellt

GE- J9/16 U3/4

Artikelnummer: 40420015616
Kategorie: Einschraubverschraubungen
Hersteller: Weisenburger Pro-Parts UG

Gerade Einschraubverschraubung GE-JU JIC mit UN/UNF Anschlussgewinde und Einschraubgewinde
Werkstoff:		Stahl
Ausführung:		GE- J9/16 U3/4
Anschlussgewinde:		9/16"-18 UNF
Außengewinde in mm Ø:		14,25mm
Außenkonus:		74°
Einschraubgewinde:		3/4"-16 UNF
Außengewinde in mm Ø:		19,00mm
Betriebsdruck:		350 bar
Dichtform:		O-Ring

Ausführung

€ 5,76

inkl. 19% USt. , zzgl.

Sofort verfügbar
Lieferzeit: 1 - 2 Werktage (DE - Ausland abweichend)

Beschreibung
Bewertungen
Frage zum Artikel

Artikelnummer:	Ausführung:	Anschlussgewinde:	Außengewinde in mm Ø:	Einschraubgewinde:	Außengewinde in mm Ø:	Betriebsdruck:
40420015601	GE- J7/16 U7/16	7/16"-20 UNF	11,07mm	7/16"-20 UNF	11,07mm	450 bar
40420015602	GE- J7/16 U1/2	7/16"-20 UNF	11,07mm	1/2"-20 UNF	12,70mm	450 bar
40420015603	GE- J7/16 U9/16	7/16"-20 UNF	11,07mm	9/16"-18 UNF	14,25mm	450 bar
40420015604	GE- J7/16 U3/4	7/16"-20 UNF	11,07mm	3/4"-16 UNF	19,00mm	450 bar
40420015605	GE- J7/16 U7/8	7/16"-20 UNF	11,07mm	7/8"-14 UNF	22,17mm	450 bar
40420015606	GE- J7/16 U3/8	7/16"-20 UNF	11,07mm	3/8"-24 UNF	9,52mm	450 bar
40420015607	GE- J7/16 U5/8	7/16"-20 UNF	11,07mm	5/8"-18 UNF	15,90mm	450 bar
40420015608	GE- J1/2 U7/16	1/2"-20 UNF	12,70mm	7/16"-20 UNF	11,07mm	416 bar
40420015609	GE- J1/2 U1/2	1/2"-20 UNF	12,70mm	1/2"-20 UNF	12,70mm	416 bar
40420015610	GE- J1/2 U9/16	1/2"-20 UNF	12,70mm	9/16"-18 UNF	14,25mm	416 bar
40420015611	GE- J1/2 U3/4	1/2"-20 UNF	12,70mm	3/4"-16 UNF	19,00mm	416 bar
40420015612	GE- J1/2 U7/8	1/2"-20 UNF	12,70mm	7/8"-14 UNF	22,17mm	416 bar
40420015613	GE- J9/16 U7/16	9/16"-18 UNF	14,25mm	7/16"-20 UNF	11,07mm	350 bar
40420015614	GE- J9/16 U1/2	9/16"-18 UNF	14,25mm	1/2"-20 UNF	12,70mm	350 bar
40420015615	GE- J9/16 U9/16	9/16"-18 UNF	14,25mm	9/16"-18 UNF	14,25mm	350 bar
40420015616	GE- J9/16 U3/4	9/16"-18 UNF	14,25mm	3/4"-16 UNF	19,00mm	350 bar
40420015617	GE- J9/16 U7/8	9/16"-18 UNF	14,25mm	7/8"-14 UNF	22,17mm	350 bar
40420015618	GE- J9/16 U1.1/16	9/16"-18 UNF	14,25mm	1.1/16"-12 UN	26,95mm	350 bar
40420015619	GE- J9/16 U3/8	9/16"-18 UNF	14,25mm	3/8"-24 UNF	9,52mm	350 bar
40420015620	GE- J9/16 U5/8	9/16"-18 UNF	14,25mm	5/8"-18 UNF	15,90mm	350 bar
40420015621	GE- J3/4 U7/16	3/4"-16 UNF	19,00mm	7/16"-20 UNF	11,07mm	350 bar
40420015622	GE- J3/4 U9/16	3/4"-16 UNF	19,00mm	9/16"-18 UNF	14,25mm	350 bar
40420015623	GE- J3/4 U3/4	3/4"-16 UNF	19,00mm	3/4"-16 UNF	19,00mm	350 bar
40420015624	GE- J3/4 U7/8	3/4"-16 UNF	19,00mm	7/8"-14 UNF	22,17mm	350 bar
40420015625	GE- J3/4 U1.1/16	3/4"-16 UNF	19,00mm	1.1/16"-12 UN	26,95mm	350 bar
40420015626	GE- J3/4 U1.5/16	3/4"-16 UNF	19,00mm	1.5/16"-12 UN	33,30mm	350 bar
40420015627	GE- J3/4 U5/8	3/4"-16 UNF	19,00mm	5/8"-18 UNF	15,90mm	350 bar
40420015628	GE- J7/8 U1/2	7/8"-14 UNF	22,17mm	1/2"-20 UNF	12,70mm	350 bar
40420015629	GE- J7/8 U9/16	7/8"-14 UNF	22,17mm	9/16"-18 UNF	14,25mm	350 bar
40420015630	GE- J7/8 U3/4	7/8"-14 UNF	22,17mm	3/4"-16 UNF	19,00mm	350 bar
40420015631	GE- J7/8 U7/8	7/8"-14 UNF	22,17mm	7/8"-14 UNF	22,17mm	350 bar
40420015632	GE- J7/8 U1.1/16	7/8"-14 UNF	22,17mm	1.1/16"-12 UN	26,95mm	350 bar
40420015633	GE- J7/8 U1.5/16	7/8"-14 UNF	22,17mm	1.5/16"-12 UN	33,30mm	350 bar
40420015634	GE- J7/8 U1.3/16	7/8"-14 UNF	22,17mm	1.3/16"-12 UN	30,10mm	350 bar
40420015635	GE- J1.1/16 U3/4	1.1/16"-12 UN	26,95mm	3/4"-16 UNF	19,00mm	320 bar
40420015636	GE- J1.1/16 U7/8	1.1/16"-12 UN	26,95mm	7/8"-14 UNF	22,17mm	320 bar
40420015637	GE- J1.1/16 U1.1/16	1.1/16"-12 UN	26,95mm	1.1/16"-12 UN	26,95mm	320 bar
40420015638	GE- J1.1/16 U1.5/16	1.1/16"-12 UN	26,95mm	1.5/16"-12 UN	33,30mm	320 bar
40420015639	GE- J1.1/16 U1.3/16	1.1/16"-12 UN	26,95mm	1.3/16"-12 UN	30,10mm	320 bar
40420015640	GE- J1.3/16 U1.1/16	1.3/16"-12 UN	30,10mm	1.1/16"-12 UN	26,95mm	320 bar
40420015641	GE- J1.3/16 U1.3/16	1.3/16"-12 UN	30,10mm	1.3/16"-12 UN	30,10mm	320 bar
40420015642	GE- J1.3/16 U1.5/16	1.3/16"-12 UN	30,10mm	1.5/16"-12 UN	33,30mm	320 bar
40420015643	GE- J1.5/16 U3/4	1.5/16"-12 UN	33,30mm	3/4"-16 UNF	19,00mm	290 bar
40420015644	GE- J1.5/16 U7/8	1.5/16"-12 UN	33,30mm	7/8"-14 UNF	22,17mm	290 bar
40420015645	GE- J1.5/16 U1.1/16	1.5/16"-12 UN	33,30mm	1.1/16"-12 UN	26,95mm	290 bar
40420015646	GE- J1.5/16 U1.5/16	1.5/16"-12 UN	33,30mm	1.5/16"-12 UN	33,30mm	290 bar
40420015647	GE- J1.5/16 U1.5/8	1.5/16"-12 UN	33,30mm	1.5/8"-12 UN	41,22mm	280 bar
40420015648	GE- J1.5/16 U1.3/16	1.5/16"-12 UN	33,30mm	1.3/16"-12 UN	30,10mm	290 bar
40420015649	GE- J1.5/8 U1.1/16	1.5/8"-12 UN	41,22mm	1.1/16"-12 UN	26,95mm	240 bar
40420015650	GE- J1.5/8 U1.5/16	1.5/8"-12 UN	41,22mm	1.5/16"-12 UN	33,30mm	240 bar
40420015651	GE- J1.5/8 U1.5/8	1.5/8"-12 UN	41,22mm	1.5/8"-12 UN	41,22mm	240 bar
40420015652	GE- J1.5/8 U1.7/8	1.5/8"-12 UN	41,22mm	1.7/8"-12 UN	47,57mm	240 bar
40420015653	GE- J1.7/8 U1.5/16	1.7/8"-12 UN	47,57mm	1.5/16"-12 UN	33,30mm	250 bar
40420015654	GE- J1.7/8 U1.5/8	1.7/8"-12 UN	47,57mm	1.5/8"-12 UN	41,22mm	250 bar
40420015655	GE- J1.7/8 U1.7/8	1.7/8"-12 UN	47,57mm	1.7/8"-12 UN	47,57mm	250 bar
40420015656	GE- J1.7/8 U2.1/2	1.7/8"-12 UN	47,57mm	2.1/12"-12 UN	63,45mm	250 bar
40420015657	GE- J2.1/2 U1.7/8	2.1/12"-12 UN	63,45mm	1.7/8"-12 UN	47,57mm	80 bar
40420015658	GE- J2.1/2 U2.1/2	2.1/12"-12 UN	63,45mm	2.1/12"-12 UN	63,45mm	80 bar
