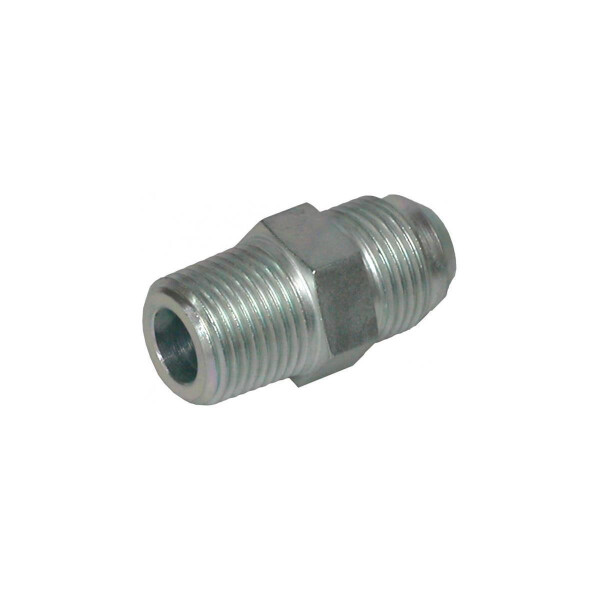

Gerade Einschraubverschraubung mit UN/UNF Anschlussgewinde hinten rechts und NPT Einschraubgewinde vorne links

Gerade Einschraubverschraubungen GE-AGJ-AGN NPT mit UN/UNF Anschlussgewinde und NPT Einschraubgewinde

Artikelnummer: 40420015520
Kategorie: Einschraubverschraubungen
Hersteller: Weisenburger Pro-Parts UG

Merkmal	Wert
Ausführung	GE-AGJ5/16"-AGN1/8" bis GE-AGJ3"-AGN2.1/2"
Werkstoff:	Stahl, verzinkt
Bauform:	Gerade
Anschlussgewinde AG:	5/16"-24 UNF bis 3"-12 UN
Anschlussgewinde AG in mm Ø:	7,94 mm bis 76,20 mm
Konus Außengewinde:	74° Außenkonus
Einschraubgewinde:	1/8"-27 NPT bis 2.1/2"-11,5 NPT
Einschraubgewinde in mm Ø:	10,24 mm bis 72,69 mm
Dichtform Einschraubgewinde:	kegeliges Gewinde
Betriebsdruck:	--- bar bis 80 bar

Ausführung

€ 0,00

inkl. 19% USt. , zzgl.

Sofort verfügbar

Dieser Artikel hat Variationen. Wählen Sie bitte die gewünschte Variation aus.

Beschreibung
Bewertungen
Frage zum Artikel

Artikelnummer	Ausführung	Anschlussgewinde AG	Anschlussgewinde AG in mm Ø	Einschraubgewinde	Einschraubgewinde in mm Ø	Betriebsdruck
40420015521	GE-AGJ5/16"-AGN1/8"	5/16"-24 UNF	7,94 mm	1/8"-27 NPT	10,24 mm	--- bar
40420015522	GE-AGJ3/8"-AGN1/8"	3/8"-24 UNF	9,52 mm	1/8"-27 NPT	10,24 mm	--- bar
40420015523	GE-AGJ3/8"-AGN1/4"	3/8"-24 UNF	9,52 mm	1/4"-18 NPT	13,61 mm	--- bar
40420015524	GE-AGJ7/16"-AGN1/8"	7/16"-20 UNF	11,07 mm	1/8"-27 NPT	10,24 mm	420 bar
40420015525	GE-AGJ7/16"-AGN1/4"	7/16"-20 UNF	11,07 mm	1/4"-18 NPT	13,61 mm	420 bar
40420015526	GE-AGJ7/16"-AGN3/8"	7/16"-20 UNF	11,07 mm	3/8"-18 NPT	17,05 mm	350 bar
40420015527	GE-AGJ7/16"-AGN1/2"	7/16"-20 UNF	11,07 mm	1/2"-14 NPT	21,22 mm	350 bar
40420015528	GE-AGJ7/16"-AGN3/4"	7/16"-20 UNF	11,07 mm	3/4"-14 NPT	26,56 mm	380 bar
40420015529	GE-AGJ1/2"-AGN1/8"	1/2"-20 UNF	12,70 mm	1/8"-27 NPT	10,24 mm	350 bar
40420015530	GE-AGJ1/2"-AGN1/4"	1/2"-20 UNF	12,70 mm	1/4"-18 NPT	13,61 mm	350 bar
40420015531	GE-AGJ1/2"-AGN3/8"	1/2"-20 UNF	12,70 mm	3/8"-18 NPT	17,05 mm	380 bar
40420015532	GE-AGJ1/2"-AGN1/2"	1/2"-20 UNF	12,70 mm	1/2"-14 NPT	21,22 mm	380 bar
40420015533	GE-AGJ9/16"-AGN1/8"	9/16"-18 UNF	14,25 mm	1/8"-27 NPT	10,24 mm	350 bar
40420015534	GE-AGJ9/16"-AGN1/4"	9/16"-18 UNF	14,25 mm	1/4"-18 NPT	13,61 mm	350 bar
40420015535	GE-AGJ9/16"-AGN3/8"	9/16"-18 UNF	14,25 mm	3/8"-18 NPT	17,05 mm	350 bar
40420015536	GE-AGJ9/16"-AGN1/2"	9/16"-18 UNF	14,25 mm	1/2"-14 NPT	21,22 mm	350 bar
40420015537	GE-AGJ9/16"-AGN3/4"	9/16"-18 UNF	14,25 mm	3/4"-14 NPT	26,56 mm	350 bar
40420015538	GE-AGJ3/4"-AGN1/8"	3/4"-16 UNF	19,00 mm	1/8"-27 NPT	10,24 mm	350 bar
40420015539	GE-AGJ3/4"-AGN1/4"	3/4"-16 UNF	19,00 mm	1/4"-18 NPT	13,61 mm	350 bar
40420015540	GE-AGJ3/4"-AGN3/8"	3/4"-16 UNF	19,00 mm	3/8"-18 NPT	17,05 mm	350 bar
40420015541	GE-AGJ3/4"-AGN1/2"	3/4"-16 UNF	19,00 mm	1/2"-14 NPT	21,22 mm	350 bar
40420015542	GE-AGJ3/4"-AGN3/4"	3/4"-16 UNF	19,00 mm	3/4"-14 NPT	26,56 mm	350 bar
40420015543	GE-AGJ3/4"-AGN1"	3/4"-16 UNF	19,00 mm	1"-11,5 NPT	33,28 mm	300 bar
40420015544	GE-AGJ3/4"-AGN1.1/4"	3/4"-16 UNF	19,00 mm	1.1/4"-11,5 NPT	41,98 mm	210 bar
40420015545	GE-AGJ3/4"-AGN1.1/2"	3/4"-16 UNF	19,00 mm	1.1/2"-11,5 NPT	48,05 mm	180 bar
40420015546	GE-AGJ7/8"-AGN1/4"	7/8"-14 UNF	22,17 mm	1/4"-18 NPT	13,61 mm	350 bar
40420015547	GE-AGJ7/8"-AGN3/8"	7/8"-14 UNF	22,17 mm	3/8"-18 NPT	17,05 mm	350 bar
40420015548	GE-AGJ7/8"-AGN1/2"	7/8"-14 UNF	22,17 mm	1/2"-14 NPT	21,22 mm	350 bar
40420015549	GE-AGJ7/8"-AGN3/4"	7/8"-14 UNF	22,17 mm	3/4"-14 NPT	26,56 mm	350 bar
40420015550	GE-AGJ7/8"-AGN1"	7/8"-14 UNF	22,17 mm	1"-11,5 NPT	33,28 mm	300 bar
40420015551	GE-AGJ1.1/16"-AGN1/4"	1.1/16"-12 UN	26,95 mm	1/4"-18 NPT	13,61 mm	320 bar
40420015552	GE-AGJ1.1/16"-AGN3/8"	1.1/16"-12 UN	26,95 mm	3/8"-18 NPT	17,05 mm	320 bar
40420015553	GE-AGJ1.1/16"-AGN1/2"	1.1/16"-12 UN	26,95 mm	1/2"-14 NPT	21,22 mm	320 bar
40420015554	GE-AGJ1.1/16"-AGN3/4"	1.1/16"-12 UN	26,95 mm	3/4"-14 NPT	26,56 mm	350 bar
40420015555	GE-AGJ1.1/16"-AGN1"	1.1/16"-12 UN	26,95 mm	1"-11,5 NPT	33,28 mm	280 bar
40420015556	GE-AGJ1.1/16"-AGN1.1/4"	1.1/16"-12 UN	26,95 mm	1.1/4"-11,5 NPT	41,98 mm	210 bar
40420015557	GE-AGJ1.1/16"-AGN1.1/2"	1.1/16"-12 UN	26,95 mm	1.1/2"-11,5 NPT	48,05 mm	180 bar
40420015558	GE-AGJ1.3/16"-AGN3/4"	1.3/16"-12 UN	30,10 mm	3/4"-14 NPT	26,56 mm	315 bar
40420015559	GE-AGJ1.5/16"-AGN1/4"	1.5/16"-12 UN	33,30 mm	1/4"-18 NPT	13,61 mm	315 bar
40420015560	GE-AGJ1.5/16"-AGN3/8"	1.5/16"-12 UN	33,30 mm	3/8"-18 NPT	17,05 mm	315 bar
40420015561	GE-AGJ1.5/16"-AGN1/2"	1.5/16"-12 UN	33,30 mm	1/2"-14 NPT	21,22 mm	280 bar
40420015562	GE-AGJ1.5/16"-AGN3/4"	1.5/16"-12 UN	33,30 mm	3/4"-14 NPT	26,56 mm	280 bar
40420015563	GE-AGJ1.5/16"-AGN1"	1.5/16"-12 UN	33,30 mm	1"-11,5 NPT	33,28 mm	280 bar
40420015564	GE-AGJ1.5/16"-AGN1.1/4"	1.5/16"-12 UN	33,30 mm	1.1/4"-11,5 NPT	41,98 mm	210 bar
40420015565	GE-AGJ1.5/16"-AGN1.1/2"	1.5/16"-12 UN	33,30 mm	1.1/2"-11,5 NPT	48,05 mm	180 bar
40420015566	GE-AGJ1.5/16"-AGN2"	1.5/16"-12 UN	33,30 mm	2"-11,5 NPT	60,09 mm	80 bar
40420015567	GE-AGJ1.5/8"-AGN3/4"	1.5/8"-12 UN	41,22 mm	3/4"-14 NPT	26,56 mm	250 bar
40420015568	GE-AGJ1.5/8"-AGN1"	1.5/8"-12 UN	41,22 mm	1"-11,5 NPT	33,28 mm	250 bar
40420015569	GE-AGJ1.5/8"-AGN1.1/4"	1.5/8"-12 UN	41,22 mm	1.1/4"-11,5 NPT	41,98 mm	210 bar
40420015570	GE-AGJ1.5/8"-AGN1.1/2"	1.5/8"-12 UN	41,22 mm	1.1/2"-11,5 NPT	48,05 mm	180 bar
40420015571	GE-AGJ1.5/8"-AGN2"	1.5/8"-12 UN	41,22 mm	2"-11,5 NPT	60,09 mm	180 bar
40420015572	GE-AGJ1.7/8"-AGN1"	1.7/8"-12 UN	47,57 mm	1"-11,5 NPT	33,28 mm	250 bar
40420015573	GE-AGJ1.7/8"-AGN1.1/4"	1.7/8"-12 UN	47,57 mm	1.1/4"-11,5 NPT	41,98 mm	210 bar
40420015574	GE-AGJ1.7/8"-AGN1.1/2"	1.7/8"-12 UN	47,57 mm	1.1/2"-11,5 NPT	48,05 mm	180 bar
40420015575	GE-AGJ1.7/8"-AGN2"	1.7/8"-12 UN	47,57 mm	2"-11,5 NPT	60,09 mm	80 bar
40420015576	GE-AGJ2.1/2"-AGN1.1/4"	2.1/2"-12 UN	63,45 mm	1.1/4"-11,5 NPT	41,98 mm	80 bar
40420015577	GE-AGJ2.1/2"-AGN1.1/2"	2.1/2"-12 UN	63,45 mm	1.1/2"-11,5 NPT	48,05 mm	80 bar
40420015578	GE-AGJ2.1/2"-AGN2"	2.1/2"-12 UN	63,45 mm	2"-11,5 NPT	60,09 mm	80 bar
40420015579	GE-AGJ3"-AGN2.1/2"	3"-12 UN	76,20 mm	2.1/2"-11,5 NPT	72,69 mm	80 bar
