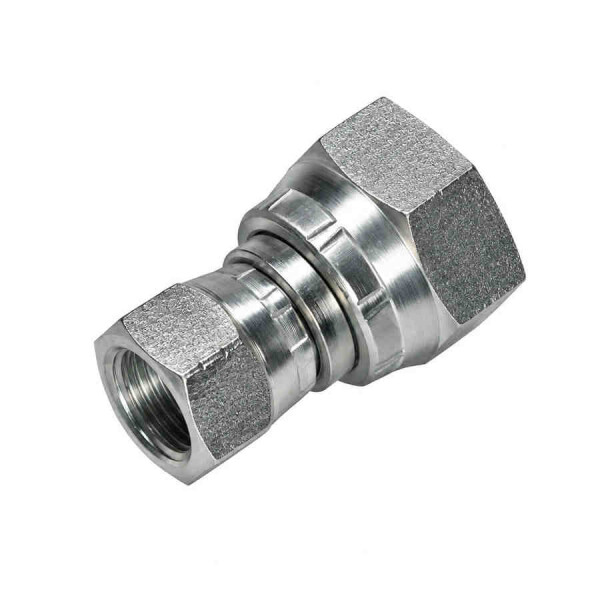

GRV-DKJ7/16"-DKJ1/2"

€ 14,78

inkl. 19% USt. , zzgl.

Artikelnummer	Ausführung	Anschlussgewinde DK	Anschlussgewinde DK in mm Ø	Anschlussgewinde DK 2	Anschlussgewinde DK 2 in mm Ø	Betriebsdruck
40420016281	GRV-DKJ7/16"-DKJ1/2"	7/16"-20 UNF	10,00 mm	1/2"-20 UNF	11,60 mm	275 bar
40420016282	GRV-DKJ7/16"-DKJ9/16"	7/16"-20 UNF	10,00 mm	9/16"-18 UNF	13,00 mm	275 bar
40420016283	GRV-DKJ7/16"-DKJ3/4"	7/16"-20 UNF	10,00 mm	3/4"-16 UNF	17,60 mm	275 bar
40420016284	GRV-DKJ1/2"-DKJ9/16"	1/2"-20 UNF	11,60 mm	9/16"-18 UNF	13,00 mm	275 bar
40420016285	GRV-DKJ9/16"-DKJ3/4"	9/16"-18 UNF	13,00 mm	3/4"-16 UNF	17,60 mm	275 bar
40420016286	GRV-DKJ9/16"-DKJ7/8"	9/16"-18 UNF	13,00 mm	7/8"-14 UNF	20,50 mm	210 bar
40420016287	GRV-DKJ3/4"-DKJ7/8"	3/4"-16 UNF	17,60 mm	7/8"-14 UNF	20,50 mm	210 bar
40420016288	GRV-DKJ3/4"-DKJ1.1/16"	3/4"-16 UNF	17,60 mm	1.1/16"-12 UN	25,00 mm	210 bar
40420016289	GRV-DKJ7/8"-DKJ1.1/16"	7/8"-14 UNF	20,50 mm	1.1/16"-12 UN	25,00 mm	210 bar
40420016290	GRV-DKJ1.1/16"-DKJ1.5/8"	1.1/16"-12 UN	25,00 mm	1.5/8"-12 UN	39,20 mm	170 bar
40420016291	GRV-DKJ1.1/16"-DKJ1.3/16"	1.1/16"-12 UN	25,00 mm	1.3/16"-12 UN	27,50 mm	170 bar
40420016292	GRV-DKJ1.5/8"-DKJ1.7/8"	1.5/8"-12 UN	39,20 mm	1.7/8"-12 UN	45,60 mm	105 bar
