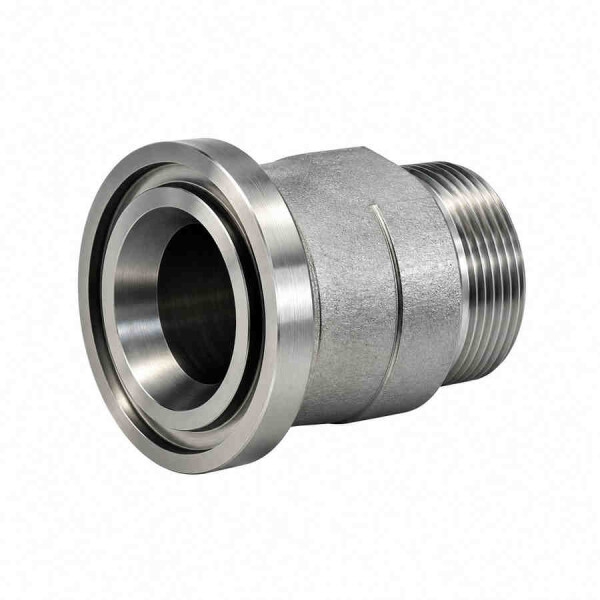

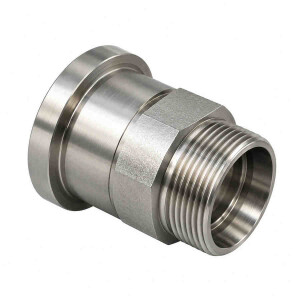

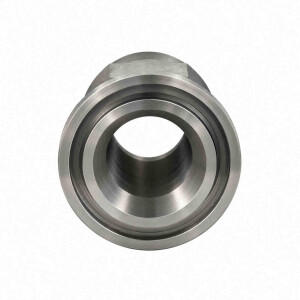

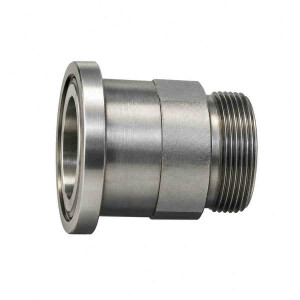

GFT3-1"-CES25

€ 51,65

inkl. 19% USt. , zzgl.

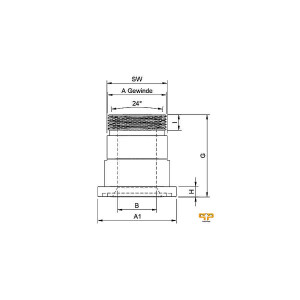

Artikelnummer	Ausführung	Flansch in mm Ø (A1)	Abmaß H	Abmaß B	Abmaß G	Abmaß I	Schlüsselweite	Rohranschluss	Rohr-Ø in mm	Anschlussgewinde AG	Anschlussgewinde AG in mm Ø	Betriebsdruck
40420080131	GFT3-1/2"-CES12	30,2mm	6,8mm					S12	12,00 mm	M20 × 1,5 (S12)	20,00 mm	350 bar
40420080132	GFT3-1/2"-CES16	30,2mm	6,8mm	12mm	50,2mm	8,5mm	24mm	S16	16,00 mm	M24 × 1,5 (S16)	24,00 mm	350 bar
40420080133	GFT3-3/4"-CES16	38,1mm	6,8mm	12/17mm	57,2mm	8,5mm	30mm	S16	16,00 mm	M24 × 1,5 (S16)	24,00 mm	350 bar
40420080134	GFT3-3/4"-CES20	38,1mm	6,8mm	16/17mm	57,2mm	10,5mm	30mm	S20	20,00 mm	M30 × 2 (S20)	30,00 mm	350 bar
40420080135	GFT3-3/4"-CES25	38,1mm	6,8mm	17mm	57,2mm	12,0mm	30mm	S25	25,00 mm	M36 × 2 (S25)	36,00 mm	350 bar
40420080136	GFT3-1"-CES20	44,5mm	8mm					S20	20,00 mm	M30 × 2 (S20)	30,00 mm	320 bar
40420080137	GFT3-1"-CES25	44,5mm	8mm	20mm	58,2mm	7,5mm	36mm	S25	25,00 mm	M36 × 2 (S25)	36,00 mm	320 bar
40420080138	GFT3-1"-CES30	44,5mm	8mm	24mm	63,2mm	13,5mm	36mm	S30	30,00 mm	M42 × 2 (S30)	42,00 mm	320 bar
40420080139	GFT3-1.1/4"-CES25	50,8mm	8mm	20/27mm	60,2mm	7,5mm	36mm	S25	25,00 mm	M36 × 2 (S25)	36,00 mm	280 bar
40420080140	GFT3-1.1/4"-CES30	50,8mm	8mm	25/28mm	62,2mm	13,5mm	41mm	S30	30,00 mm	M42 × 2 (S30)	42,00 mm	280 bar
40420080141	GFT3-1.1/4"-CES38	50,8mm	8mm	28mm	66,2mm	16,0mm	46mm	S38	38,00 mm	M52 × 2 (S38)	52,00 mm	280 bar
40420080142	GFT3-1.1/2"-CES38	60,3mm	8mm	32mm	70,2mm	16,0mm	46mm	S38	38,00 mm	M52 × 2 (S38)	52,00 mm	210 bar
40420080143	GFT3-2"-CES38	71,4mm	9,6mm	32/51mm	80mm	16mm	46mm	S38	38,00 mm	M52 × 2 (S38)	52,00 mm	210 bar
