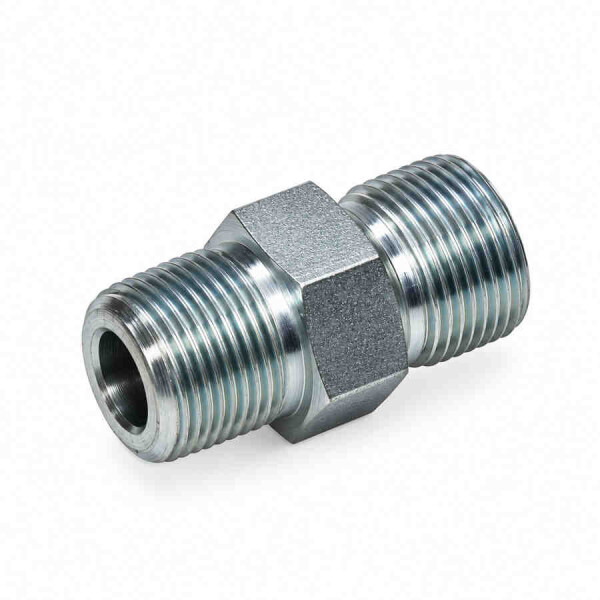

Gerade Einschraubverschraubung mit BSPP Anschlussgewinde und kegeligem BSPT Einschraubgewinde wird im Bild diagonal dargestellt

GE-AGR3/8"-AGRK1/8"

Artikelnummer: 40420018410
Kategorie: Einschraubverschraubungen
Hersteller: Weisenburger Pro-Parts UG

Merkmal	Wert
Werkstoff:	Stahl, verzinkt
Bauform:	gerade
Anschlussgewinde AG:	G3/8"-19 BSPP, zylindrisch
Anschlussgewinde AG in mm Ø:	16,66 mm
Konus Außengewinde:	60° Außenkonus
Einschraubgewinde:	R1/8"-28 BSPT, kegelig
Einschraubgewinde in mm Ø:	9,73 mm
Dichtform Einschraubgewinde:	kegeliges Gewinde
Betriebsdruck:	350 bar

Ausführung

€ 7,05

inkl. 19% USt. , zzgl.

Sofort verfügbar
Lieferzeit: 2 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Bewertungen
Frage zum Artikel

Artikelnummer	Ausführung	Anschlussgewinde AG	Anschlussgewinde AG in mm Ø	Einschraubgewinde	Einschraubgewinde in mm Ø	Betriebsdruck
40420018401	GE-AGR1/8"-AGRK1/8"	G1/8"-28 BSPP, zylindrisch	9,73 mm	R1/8"-28 BSPT, kegelig	9,73 mm	350 bar
40420018402	GE-AGR1/8"-AGRK1/4"	G1/8"-28 BSPP, zylindrisch	9,73 mm	R1/4"-19 BSPT, kegelig	13,16 mm	350 bar
40420018403	GE-AGR1/8"-AGRK3/8"	G1/8"-28 BSPP, zylindrisch	9,73 mm	R3/8"-19 BSPT, kegelig	16,66 mm	350 bar
40420018404	GE-AGR1/8"-AGRK1/2"	G1/8"-28 BSPP, zylindrisch	9,73 mm	R1/2"-14 BSPT, kegelig	20,96 mm	350 bar
40420018405	GE-AGR1/4"-AGRK1/8"	G1/4"-19 BSPP, zylindrisch	13,16 mm	R1/8"-28 BSPT, kegelig	9,73 mm	350 bar
40420018406	GE-AGR1/4"-AGRK1/4"	G1/4"-19 BSPP, zylindrisch	13,16 mm	R1/4"-19 BSPT, kegelig	13,16 mm	350 bar
40420018407	GE-AGR1/4"-AGRK3/8"	G1/4"-19 BSPP, zylindrisch	13,16 mm	R3/8"-19 BSPT, kegelig	16,66 mm	350 bar
40420018408	GE-AGR1/4"-AGRK1/2"	G1/4"-19 BSPP, zylindrisch	13,16 mm	R1/2"-14 BSPT, kegelig	20,96 mm	350 bar
40420018409	GE-AGR1/4"-AGRK3/4"	G1/4"-19 BSPP, zylindrisch	13,16 mm	R3/4"-14 BSPT, kegelig	26,44 mm	350 bar
40420018410	GE-AGR3/8"-AGRK1/8"	G3/8"-19 BSPP, zylindrisch	16,66 mm	R1/8"-28 BSPT, kegelig	9,73 mm	350 bar
40420018411	GE-AGR3/8"-AGRK1/4"	G3/8"-19 BSPP, zylindrisch	16,66 mm	R1/4"-19 BSPT, kegelig	13,16 mm	350 bar
40420018412	GE-AGR3/8"-AGRK3/8"	G3/8"-19 BSPP, zylindrisch	16,66 mm	R3/8"-19 BSPT, kegelig	16,66 mm	350 bar
40420018413	GE-AGR3/8"-AGRK1/2"	G3/8"-19 BSPP, zylindrisch	16,66 mm	R1/2"-14 BSPT, kegelig	20,96 mm	200 bar
40420018414	GE-AGR3/8"-AGRK5/8"	G3/8"-19 BSPP, zylindrisch	16,66 mm	R5/8"-14 BSPT, kegelig	22,91 mm	200 bar
40420018415	GE-AGR3/8"-AGRK3/4"	G3/8"-19 BSPP, zylindrisch	16,66 mm	R3/4"-14 BSPT, kegelig	26,44 mm	200 bar
40420018416	GE-AGR3/8"-AGRK1"	G3/8"-19 BSPP, zylindrisch	16,66 mm	R1"-11 BSPT, kegelig	33,25 mm	200 bar
40420018417	GE-AGR1/2"-AGRK1/8"	G1/2"-14 BSPP, zylindrisch	20,96 mm	R1/8"-28 BSPT, kegelig	9,73 mm	200 bar
40420018418	GE-AGR1/2"-AGRK1/4"	G1/2"-14 BSPP, zylindrisch	20,96 mm	R1/4"-19 BSPT, kegelig	13,16 mm	200 bar
40420018419	GE-AGR1/2"-AGRK3/8"	G1/2"-14 BSPP, zylindrisch	20,96 mm	R3/8"-19 BSPT, kegelig	16,66 mm	200 bar
40420018420	GE-AGR1/2"-AGRK1/2"	G1/2"-14 BSPP, zylindrisch	20,96 mm	R1/2"-14 BSPT, kegelig	20,96 mm	200 bar
40420018421	GE-AGR1/2"-AGRK5/8"	G1/2"-14 BSPP, zylindrisch	20,96 mm	R5/8"-14 BSPT, kegelig	22,91 mm	200 bar
40420018422	GE-AGR1/2"-AGRK3/4"	G1/2"-14 BSPP, zylindrisch	20,96 mm	R3/4"-14 BSPT, kegelig	26,44 mm	200 bar
40420018423	GE-AGR1/2"-AGRK1"	G1/2"-14 BSPP, zylindrisch	20,96 mm	R1"-11 BSPT, kegelig	33,25 mm	200 bar
40420018424	GE-AGR1/2"-AGRK1.1/4"	G1/2"-14 BSPP, zylindrisch	20,96 mm	R1.1/4"-11 BSPT, kegelig	41,91 mm	200 bar
40420018425	GE-AGR5/8"-AGRK1/4"	G5/8"-14 BSPP, zylindrisch	22,91 mm	R1/4"-19 BSPT, kegelig	13,16 mm	200 bar
40420018426	GE-AGR5/8"-AGRK3/8"	G5/8"-14 BSPP, zylindrisch	22,91 mm	R3/8"-19 BSPT, kegelig	16,66 mm	200 bar
40420018427	GE-AGR5/8"-AGRK1/2"	G5/8"-14 BSPP, zylindrisch	22,91 mm	R1/2"-14 BSPT, kegelig	20,96 mm	200 bar
40420018428	GE-AGR5/8"-AGRK5/8"	G5/8"-14 BSPP, zylindrisch	22,91 mm	R5/8"-14 BSPT, kegelig	22,91 mm	200 bar
40420018429	GE-AGR5/8"-AGRK3/4"	G5/8"-14 BSPP, zylindrisch	22,91 mm	R3/4"-14 BSPT, kegelig	26,44 mm	200 bar
40420018430	GE-AGR3/4"-AGRK1/4"	G3/4"-14 BSPP, zylindrisch	26,44 mm	R1/4"-19 BSPT, kegelig	13,16 mm	200 bar
40420018431	GE-AGR3/4"-AGRK3/8"	G3/4"-14 BSPP, zylindrisch	26,44 mm	R3/8"-19 BSPT, kegelig	16,66 mm	200 bar
40420018432	GE-AGR3/4"-AGRK1/2"	G3/4"-14 BSPP, zylindrisch	26,44 mm	R1/2"-14 BSPT, kegelig	20,96 mm	200 bar
40420018433	GE-AGR3/4"-AGRK5/8"	G3/4"-14 BSPP, zylindrisch	26,44 mm	R5/8"-14 BSPT, kegelig	22,91 mm	200 bar
40420018434	GE-AGR3/4"-AGRK3/4"	G3/4"-14 BSPP, zylindrisch	26,44 mm	R3/4"-14 BSPT, kegelig	26,44 mm	200 bar
40420018435	GE-AGR3/4"-AGRK1"	G3/4"-14 BSPP, zylindrisch	26,44 mm	R1"-11 BSPT, kegelig	33,25 mm	120 bar
40420018436	GE-AGR3/4"-AGRK1.1/4"	G3/4"-14 BSPP, zylindrisch	26,44 mm	R1.1/4"-11 BSPT, kegelig	41,91 mm	120 bar
40420018437	GE-AGR3/4"-AGRK1.1/2"	G3/4"-14 BSPP, zylindrisch	26,44 mm	R1.1/2"-11 BSPT, kegelig	47,80 mm	120 bar
40420018438	GE-AGR3/4"-AGRK2"	G3/4"-14 BSPP, zylindrisch	26,44 mm	R2"-11 BSPT, kegelig	59,62 mm	80 bar
40420018439	GE-AGR1"-AGRK1/4"	G1"-11 BSPP, zylindrisch	33,25 mm	R1/4"-19 BSPT, kegelig	13,16 mm	120 bar
40420018440	GE-AGR1"-AGRK3/8"	G1"-11 BSPP, zylindrisch	33,25 mm	R3/8"-19 BSPT, kegelig	16,66 mm	120 bar
40420018441	GE-AGR1"-AGRK1/2"	G1"-11 BSPP, zylindrisch	33,25 mm	R1/2"-14 BSPT, kegelig	20,96 mm	120 bar
40420018442	GE-AGR1"-AGRK3/4"	G1"-11 BSPP, zylindrisch	33,25 mm	R3/4"-14 BSPT, kegelig	26,44 mm	120 bar
40420018443	GE-AGR1"-AGRK1"	G1"-11 BSPP, zylindrisch	33,25 mm	R1"-11 BSPT, kegelig	33,25 mm	120 bar
40420018444	GE-AGR1"-AGRK1.1/4"	G1"-11 BSPP, zylindrisch	33,25 mm	R1.1/4"-11 BSPT, kegelig	41,91 mm	105 bar
40420018445	GE-AGR1"-AGRK1.1/2"	G1"-11 BSPP, zylindrisch	33,25 mm	R1.1/2"-11 BSPT, kegelig	47,80 mm	105 bar
40420018446	GE-AGR1"-AGRK2"	G1"-11 BSPP, zylindrisch	33,25 mm	R2"-11 BSPT, kegelig	59,62 mm	80 bar
40420018447	GE-AGR1.1/4"-AGRK3/4"	G1.1/4"-11 BSPP, zylindrisch	41,91 mm	R3/4"-14 BSPT, kegelig	26,44 mm	250 bar
40420018448	GE-AGR1.1/4"-AGRK1"	G1.1/4"-11 BSPP, zylindrisch	41,91 mm	R1"-11 BSPT, kegelig	33,25 mm	250 bar
40420018449	GE-AGR1.1/4"-AGRK1.1/4"	G1.1/4"-11 BSPP, zylindrisch	41,91 mm	R1.1/4"-11 BSPT, kegelig	41,91 mm	250 bar
40420018450	GE-AGR1.1/4"-AGRK1.1/2"	G1.1/4"-11 BSPP, zylindrisch	41,91 mm	R1.1/2"-11 BSPT, kegelig	47,80 mm	250 bar
40420018451	GE-AGR1.1/4"-AGRK2"	G1.1/4"-11 BSPP, zylindrisch	41,91 mm	R2"-11 BSPT, kegelig	59,62 mm	80 bar
40420018452	GE-AGR1.1/2"-AGRK1"	G1.1/2"-11 BSPP, zylindrisch	47,80 mm	R1"-11 BSPT, kegelig	33,25 mm	250 bar
40420018453	GE-AGR1.1/2"-AGRK1.1/4"	G1.1/2"-11 BSPP, zylindrisch	47,80 mm	R1.1/4"-11 BSPT, kegelig	41,91 mm	250 bar
40420018454	GE-AGR1.1/2"-AGRK1.1/2"	G1.1/2"-11 BSPP, zylindrisch	47,80 mm	R1.1/2"-11 BSPT, kegelig	47,80 mm	250 bar
40420018455	GE-AGR1.1/2"-AGRK2"	G1.1/2"-11 BSPP, zylindrisch	47,80 mm	R2"-11 BSPT, kegelig	59,62 mm	80 bar
40420018456	GE-AGR2"-AGRK1"	G2"-11 BSPP, zylindrisch	59,62 mm	R1"-11 BSPT, kegelig	33,25 mm	80 bar
40420018457	GE-AGR2"-AGRK1.1/4"	G2"-11 BSPP, zylindrisch	59,62 mm	R1.1/4"-11 BSPT, kegelig	41,91 mm	80 bar
40420018458	GE-AGR2"-AGRK1.1/2"	G2"-11 BSPP, zylindrisch	59,62 mm	R1.1/2"-11 BSPT, kegelig	47,80 mm	80 bar
40420018459	GE-AGR2"-AGRK2"	G2"-11 BSPP, zylindrisch	59,62 mm	R2"-11 BSPT, kegelig	59,62 mm	80 bar
40420018460	GE-AGR2"-AGRK2.1/2"	G2"-11 BSPP, zylindrisch	59,62 mm	R2.1/2"-11 BSPT, kegelig	75,18 mm	70 bar
40420018461	GE-AGR2"-AGRK3"	G2"-11 BSPP, zylindrisch	59,62 mm	R3"-11 BSPT, kegelig	87,88 mm	50 bar
40420018462	GE-AGR2.1/2"-AGRK2"	G2.1/2"-11 BSPP, zylindrisch	75,18 mm	R2"-11 BSPT, kegelig	59,62 mm	70 bar
40420018463	GE-AGR2.1/2"-AGRK2.1/2"	G2.1/2"-11 BSPP, zylindrisch	75,18 mm	R2.1/2"-11 BSPT, kegelig	75,18 mm	70 bar
40420018464	GE-AGR2.1/2"-AGRK3"	G2.1/2"-11 BSPP, zylindrisch	75,18 mm	R3"-11 BSPT, kegelig	87,88 mm	50 bar
40420018465	GE-AGR3"-AGRK2.1/2"	G3"-11 BSPP, zylindrisch	87,88 mm	R2.1/2"-11 BSPT, kegelig	75,18 mm	50 bar
40420018466	GE-AGR3"-AGRK3"	G3"-11 BSPP, zylindrisch	87,88 mm	R3"-11 BSPT, kegelig	87,88 mm	50 bar
40420018467	GE-AGR4"-AGRK4"	G4"-11 BSPP, zylindrisch	113,03 mm	R4"-11 BSPT, kegelig	113,03 mm	50 bar
