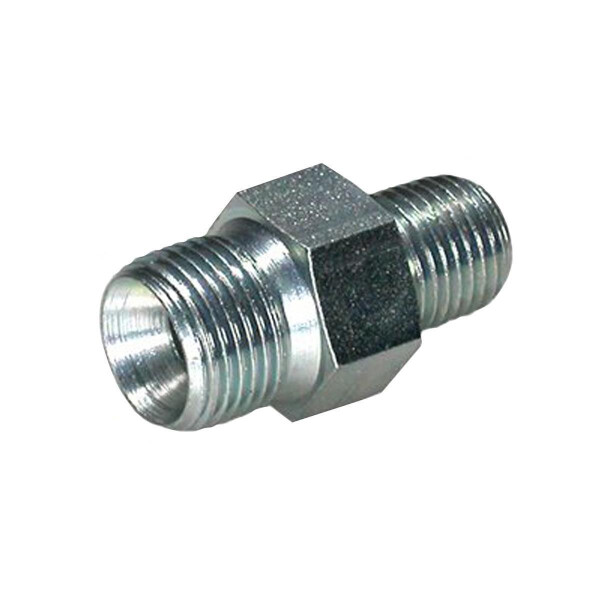

Gerade Einschraubverschraubung mit BSPP, zylindrischem Anschlussgewinde vorne und NPT Einschraubgewinde hinten wird diagonal im Bild dargestellt

GE-AGR1/4" AGN1"

Artikelnummer: 40420018490
Kategorie: Einschraubverschraubungen
Hersteller: Weisenburger Pro-Parts UG

Gerade Einschraubverschraubung GE-AGR AGN mit BSPP, zylindrischem Anschlussgewinde und NPT Einschraubgewinde
Werkstoff:		Stahl
Ausführung:		GE-AGR1/4" AGN1"
Anschlussgewinde:		G1/4"-18 BSPP
Anschlussgewinde in mm Ø:		13,16mm
Konus:		60°
Einschraubgewinde:		1"-11,5 NPT
Einschraubgewinde in mm Ø:		33,23mm
Betriebsdruck:		350 bar
Dichtform:		Kegelgewinde

Ausführung

€ 24,45

inkl. 19% USt. , zzgl.

Sofort verfügbar
Lieferzeit: 2 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Bewertungen
Frage zum Artikel

Artikelnummer:	Ausführung:	Anschlussgewinde:	Anschlussgewinde in mm Ø:	Einschraubgewinde:	Einschraubgewinde in mm Ø:	Betriebsdruck:
40420018481	GE-AGR1/8" AGN1/8"	G1/8"-28 BSPP	9,73mm	1/8"-27 NPT	10,24mm	350 bar
40420018482	GE-AGR1/8" AGN1/4"	G1/8"-28 BSPP	9,73mm	1/4"-18 NPT	13,62mm	350 bar
40420018483	GE-AGR1/8" AGN3/8"	G1/8"-28 BSPP	9,73mm	3/8"-18 NPT	17,05mm	350 bar
40420018484	GE-AGR1/8" AGN1/2"	G1/8"-28 BSPP	9,73mm	1/2"-14 NPT	21,22mm	350 bar
40420018485	GE-AGR1/4" AGN1/8"	G1/4"-18 BSPP	13,16mm	1/8"-27 NPT	10,24mm	350 bar
40420018486	GE-AGR1/4" AGN1/4"	G1/4"-18 BSPP	13,16mm	1/4"-18 NPT	13,62mm	350 bar
40420018487	GE-AGR1/4" AGN3/8"	G1/4"-18 BSPP	13,16mm	3/8"-18 NPT	17,05mm	350 bar
40420018488	GE-AGR1/4" AGN1/2"	G1/4"-18 BSPP	13,16mm	1/2"-14 NPT	21,22mm	350 bar
40420018489	GE-AGR1/4" AGN3/4"	G1/4"-18 BSPP	13,16mm	3/4"-14 NPT	26,57mm	350 bar
40420018490	GE-AGR1/4" AGN1"	G1/4"-18 BSPP	13,16mm	1"-11,5 NPT	33,23mm	350 bar
40420018491	GE-AGR3/8" AGN1/8"	G3/8"-18 BSPP	16,66mm	1/8"-27 NPT	10,24mm	350 bar
40420018492	GE-AGR3/8" AGN1/4"	G3/8"-18 BSPP	16,66mm	1/4"-18 NPT	13,62mm	350 bar
40420018493	GE-AGR3/8" AGN3/8"	G3/8"-18 BSPP	16,66mm	3/8"-18 NPT	17,05mm	350 bar
40420018494	GE-AGR3/8" AGN1/2"	G3/8"-18 BSPP	16,66mm	1/2"-14 NPT	21,22mm	350 bar
40420018495	GE-AGR3/8" AGN3/4"	G3/8"-18 BSPP	16,66mm	3/4"-14 NPT	26,57mm	200 bar
40420018496	GE-AGR3/8" AGN1"	G3/8"-18 BSPP	16,66mm	1"-11,5 NPT	33,23mm	200 bar
40420018497	GE-AGR1/2" AGN1/8"	G1/2"-14 BSPP	20,96mm	1/8"-27 NPT	10,24mm	200 bar
40420018498	GE-AGR1/2" AGN1/4"	G1/2"-14 BSPP	20,96mm	1/4"-18 NPT	13,62mm	200 bar
40420018499	GE-AGR1/2" AGN3/8"	G1/2"-14 BSPP	20,96mm	3/8"-18 NPT	17,05mm	200 bar
40420018500	GE-AGR1/2" AGN1/2"	G1/2"-14 BSPP	20,96mm	1/2"-14 NPT	21,22mm	200 bar
40420018501	GE-AGR1/2" AGN3/4"	G1/2"-14 BSPP	20,96mm	3/4"-14 NPT	26,57mm	200 bar
40420018502	GE-AGR1/2" AGN1"	G1/2"-14 BSPP	20,96mm	1"-11,5 NPT	33,23mm	200 bar
40420018503	GE-AGR1/2" AGN1.1/4"	G1/2"-14 BSPP	20,96mm	1.1/4"-11,5 NPT	41,99mm	200 bar
40420018504	GE-AGR5/8" AGN3/8"	G5/8"-14 BSPP	22,91mm	3/8"-18 NPT	17,05mm	200 bar
40420018505	GE-AGR5/8" AGN1/2"	G5/8"-14 BSPP	22,91mm	1/2"-14 NPT	21,22mm	200 bar
40420018506	GE-AGR5/8" AGN3/4"	G5/8"-14 BSPP	22,91mm	3/4"-14 NPT	26,56mm	200 bar
40420018507	GE-AGR3/4" AGN1/4"	G3/4"-14 BSPP	26,44mm	1/4"-18 NPT	13,62mm	200 bar
40420018508	GE-AGR3/4" AGN3/8"	G3/4"-14 BSPP	26,44mm	3/8"-18 NPT	17,05mm	200 bar
40420018509	GE-AGR3/4" AGN1/2"	G3/4"-14 BSPP	26,44mm	1/2"-14 NPT	21,22mm	200 bar
40420018510	GE-AGR3/4" AGN3/4"	G3/4"-14 BSPP	26,44mm	3/4"-14 NPT	26,56mm	200 bar
40420018511	GE-AGR3/4" AGN1"	G3/4"-14 BSPP	26,44mm	1"-11,5 NPT	33,23mm	200 bar
40420018512	GE-AGR3/4" AGN1.1/4"	G3/4"-14 BSPP	26,44mm	1.1/4"-11,5 NPT	41,98mm	120 bar
40420018513	GE-AGR3/4" AGN1.1/2"	G3/4"-14 BSPP	26,44mm	1.1/2"-11,5 NPT	48,05mm	120 bar
40420018514	GE-AGR3/4" AGN2"	G3/4"-14 BSPP	26,44mm	2"-11,5 NPT	60,09mm	80 bar
40420018515	GE-AGR1" AGN1/4"	G1"-11 BSPP	33,25mm	1/4"-18 NPT	13,62mm	120 bar
40420018516	GE-AGR1" AGN3/8"	G1"-11 BSPP	33,25mm	3/8"-18 NPT	17,05mm	120 bar
40420018517	GE-AGR1" AGN1/2"	G1"-11 BSPP	33,25mm	1/2"-14 NPT	21,22mm	120 bar
40420018518	GE-AGR1" AGN3/4"	G1"-11 BSPP	33,25mm	3/4"-14 NPT	26,57mm	120 bar
40420018519	GE-AGR1" AGN1"	G1"-11 BSPP	33,25mm	1"-11,5 NPT	33,23mm	120 bar
40420018520	GE-AGR1" AGN1.1/2"	G1"-11 BSPP	33,25mm	1.1/2"-11,5 NPT	48,05mm	120 bar
40420018521	GE-AGR1" AGN2"	G1"-11 BSPP	33,25mm	2"-11,5 NPT	60,09mm	80 bar
40420018522	GE-AGR1.1/4" AGN3/4"	G1.1/4"-11 BSPP	41,91mm	3/4"-14 NPT	26,56mm	250 bar
40420018523	GE-AGR1.1/4" AGN1"	G1.1/4"-11 BSPP	41,91mm	1"-11,5 NPT	33,28mm	250 bar
40420018524	GE-AGR1.1/4" AGN1.1/4"	G1.1/4"-11 BSPP	41,91mm	1.1/4"-11,5 NPT	41,98mm	210 bar
40420018525	GE-AGR1.1/4" AGN1.1/2"	G1.1/4"-11 BSPP	41,91mm	1.1/2"-11,5 NPT	48,05mm	180 bar
40420018526	GE-AGR1.1/4" AGN2"	G1.1/4"-11 BSPP	41,91mm	2"-11,5 NPT	60,09mm	80 bar
40420018527	GE-AGR1.1/2" AGN3/4"	G1.1/2"-11 BSPP	47,80mm	3/4"-14 NPT	26,56mm	250 bar
40420018528	GE-AGR1.1/2" AGN1"	G1.1/2"-11 BSPP	47,80mm	1"-11,5 NPT	33,23mm	250 bar
40420018529	GE-AGR1.1/2" AGN1.1/4"	G1.1/2"-11 BSPP	47,80mm	1.1/4"-11,5 NPT	41,98mm	210 bar
40420018530	GE-AGR1.1/2" AGN1.1/2"	G1.1/2"-11 BSPP	47,80mm	1.1/2"-11,5 NPT	48,05mm	180 bar
40420018531	GE-AGR1.1/2" AGN2"	G1.1/2"-11 BSPP	47,80mm	2"-11,5 NPT	60,09mm	80 bar
40420018532	GE-AGR2" AGN1"	G2"-11 BSPP	59,62mm	1"-11,5 NPT	33,23mm	80 bar
40420018533	GE-AGR2" AGN1.1/4"	G2"-11 BSPP	59,62mm	1.1/4"-11,5 NPT	41,98mm	80 bar
40420018534	GE-AGR2" AGN1.1/2"	G2"-11 BSPP	59,62mm	1.1/2"-11,5 NPT	48,05mm	80 bar
40420018535	GE-AGR2" AGN2"	G2"-11 BSPP	59,62mm	2"-11,5 NPT	60,09mm	80 bar
40420018536	GE-AGR2" AGN2.1/2"	G2"-11 BSPP	59,62mm	2.1/2"-11,5 NPT	72,69mm	70 bar
40420018537	GE-AGR2" AGN3"	G2"-11 BSPP	59,62mm	3"-11,5 NPT	88,60mm	50 bar
40420018538	GE-AGR2.1/2" AGN2"	G2.1/2"-11 BSPP	75,18mm	2"-11,5 NPT	60,09mm	70 bar
40420018539	GE-AGR2.1/2" AGN2.1/2"	G2.1/2"-11 BSPP	75,18mm	2.1/2"-11,5 NPT	72,69mm	70 bar
40420018540	GE-AGR2.1/2" AGN3"	G2.1/2"-11 BSPP	75,18mm	3"-11,5 NPT	88,60mm	50 bar
40420018541	GE-AGR3" AGN2"	G3"-11 BSPP	87,88mm	2"-11,5 NPT	60,09mm	50 bar
40420018542	GE-AGR3" AGN2.1/2"	G3"-11 BSPP	87,88mm	2.1/2"-11,5 NPT	72,69mm	50 bar
40420018543	GE-AGR3" AGN3"	G3"-11 BSPP	87,88mm	3"-11,5 NPT	88,60mm	50 bar
40420018544	GE-AGR4" AGN4"	G4"-11 BSPP	113,03mm	4"-11,5 NPT	113,97mm	50 bar
