3000 PSI SAE flange fittings sizes, heights and mounting requirements
SAE flange fittings are a popular choice in the hydraulic industry because they provide a secure and reliable connection between hydraulic cylinders, pumps, and other components.

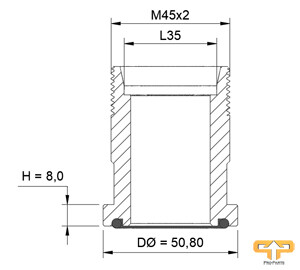

The PSI rating for Metric-Light SAE flange fittings typically ranges around 3000 PSI. The height of the flange plate varies depending on the size. For Metric-Light SAE flanges ranging from 1/2" to 3/4" in size, the height of the flange plate is usually around 6.8 mm. For flanges sized from 1" to 1 1/2", the height of the flange plate typically measures 8.0 mm. For flanges ranging from 2" to 3" in size, the height of the flange plate typically measures 9.6 mm.
When selecting Metric-Light SAE flanges, it's crucial to consider both the size and height of the flange plate to ensure a safe and effective connection. It's also important to ensure that the flange is suitable for the specific requirements of your application.
Please note that Metric-Light SAE flange fittings can only be assembled with flange halves. The flange halves are necessary to securely mount the flange plate with preload pressure against the O-ring on the sealing surface of the hydraulic cylinder or pump. Make sure to choose the appropriate flange halves for your flange and perform proper assembly to ensure a safe and reliable connection.
Conclusion
Overall, Metric-Light SAE flange fittings are a reliable and effective method for securely and tightly connecting hydraulic systems. With the right selection and assembly, they can provide maximum performance and reliability.
