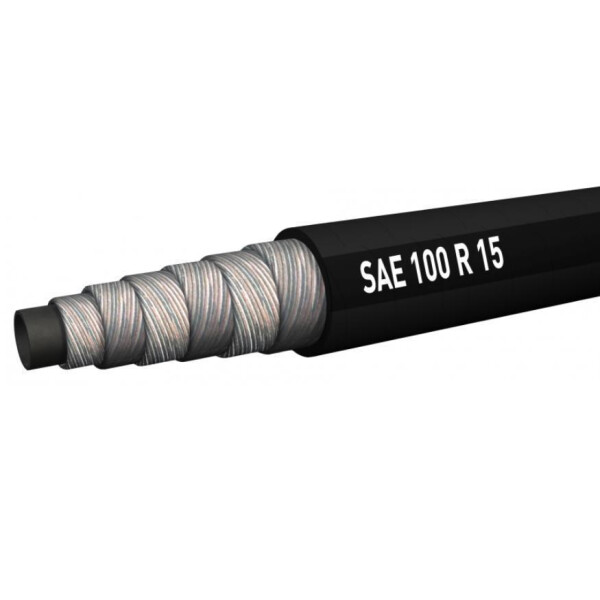

R 15 DN 51 Hydraulic Hose

  • SKU: 20156010005
  • Category: R 15
R15 Hydraulic Hose
Soul: Oil-resistant synthetic rubber
Inlay: Up to DN 25 four, from DN 31 six steel wire spiral layers
Ceiling: Abrasion and weather-resistant synthetic rubber
Execution: R15 DN51
Size: 32
Inch: 2"
Inside Ø: 50,8mm (±0,3mm)
Outside Ø: 72mm (±0,3mm)
Operating pressure: 420 bar
Test pressure: 840 bar
Burst pressure: 1680 bar
Bending radius: 600mm
Temperature range: -40°C to +100°C max. +125°C
Notice: 1 piece = 1 meter
  10 pieces = 10 meters
Ausführung
Price on request
  • Available immediately
