Angle screw connection
Homepage
Hydraulic
Hydraulic fittings
Metric light
90°

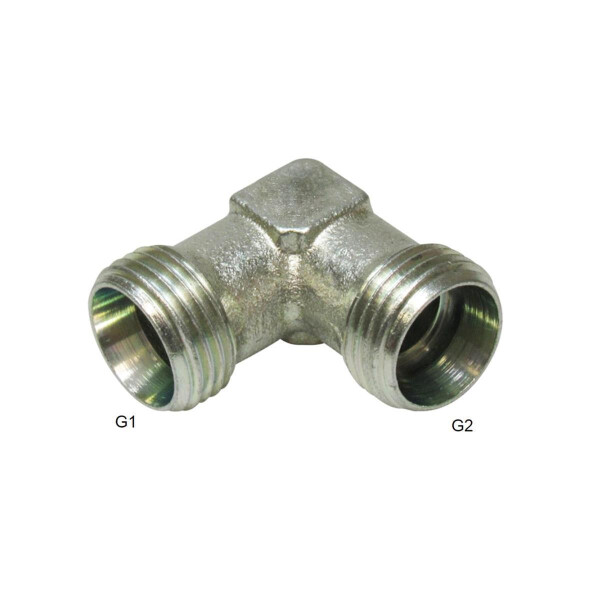

Angle screw connection
Winkel- Verschraubung XW-90° L metrisch leicht
Winkel- Verschraubung XW-90° L metrisch leicht
SKU:
40420101039
Category:
Angle screw connection
Winkel- Verschraubung XW-90° L metrisch leicht
Werkstoff:
Stahl
Ausführung:
XW-90° L
Rohranschluss:
L06 bis L42
Anschlussgewinde G2:
M12x1,5 bis M52x2
Konus:
24°
Einschraubgewinde G1:
M12x1,5 bis M52x2
Betriebsdruck:
160-315 bar
Ausführung
XW-L06
XW-L08<span class="variation-badge ">+ € 0,49</span>
XW-L10<span class="variation-badge ">+ € 0,72</span>
XW-L12<span class="variation-badge ">+ € 2,09</span>
XW-L15<span class="variation-badge ">+ € 5,37</span>
XW-L18<span class="variation-badge ">+ € 8,50</span>
XW-L22<span class="variation-badge ">+ € 15,32</span>
XW-L28<span class="variation-badge ">+ € 27,49</span>
XW-L35<span class="variation-badge ">+ € 45,48</span>
XW-L42<span class="variation-badge ">+ € 66,57</span>
from
€ 7,40
incl. 19% VAT , plus
shipping costs
(DHL Standardversand)
Available immediately
x
This item has variations. Please select the requested variation.
Loading...
grant consent
Loading...
components are loading ...
Description
Reviews
Question about item
Artikelnummer:
Ausführung:
Rohranschluss:
Anschlussgewinde G2:
Einschraubgewinde G1:
Betriebsdruck:
40420101040
XW-90° L06
L06
M12x1,5
M12x1,5
315 bar
40420101041
XW-90° L08
L08
M14x1,5
M14x1,5
315 bar
40420101042
XW-90° L10
L10
M16x1,5
M16x1,5
315 bar
40420101043
XW-90° L12
L12
M18x1,5
M18x1,5
315 bar
40420101044
XW-90° L15
L15
M22x1,5
M22x1,5
315 bar
40420101045
XW-90° L18
L18
M26x15
M26x15
315 bar
40420101046
XW-90° L22
L22
M30x2
M30x2
160 bar
40420101047
XW-90° L28
L28
M36x2
M36x2
160 bar
40420101048
XW-90° L35
L35
M45x2
M45x2
160 bar
40420101049
XW-90° L42
L42
M52x2
M52x2
160 bar
Shipping weight:
0,05 kg
Item weight:
0,02
kg
