Elbow screw connection

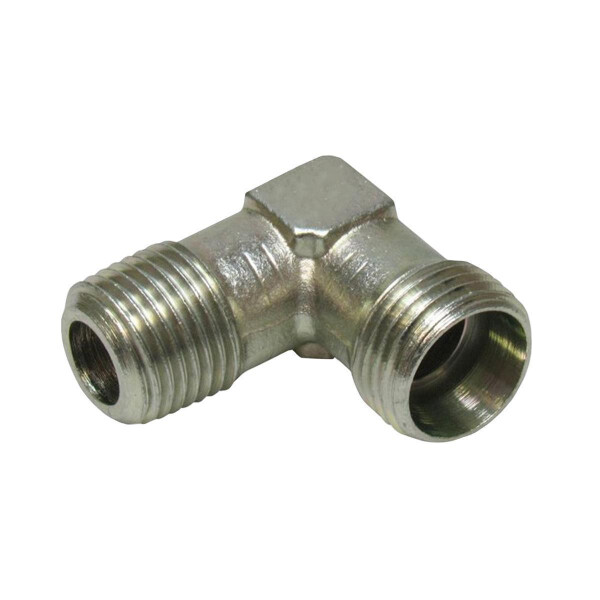

Winkel- Einschraubverschraubung XWE-90° LR metrisch leicht mit BSP kegeligem Einschraubgewinde
Winkel- Einschraubverschraubung XWE-90° LR metrisch leicht mit BSP kegeligem Einschraubgewinde
SKU:
40420102280
Category:
Elbow screw connection
Winkel- Einschraubverschraubung XWE-90° LR metrisch leicht mit BSP kegeligem Einschraubgewinde
Werkstoff:
Stahl
Ausführung:
XWE-90° LR
Rohranschluss:
L06 bis L28
Anschlussgewinde:
M12x1,5 bis M36x2
Konus:
24°
Einschraubgewinde:
BSPP keg. R1/8"-28 bis R1"-11
Betriebsdruck:
160-315 bar
Ausführung
XWE-90° L06 R1/8"<span class="variation-badge ">+ € 1,48</span>
XWE-90° L06 R1/4"
XWE-90° L06 R3/8"<span class="variation-badge ">+ € 19,44</span>
XWE-90° L08 R1/8"<span class="variation-badge ">+ € 8,31</span>
XWE-90° L08 R1/4"<span class="variation-badge ">+ € 1,94</span>
XWE-90° L08 R3/8"<span class="variation-badge ">+ € 20,41</span>
XWE-90° L08 R1/2"<span class="variation-badge ">+ € 4,00</span>
XWE-90° L10 R1/8"<span class="variation-badge ">+ € 0,91</span>
XWE-90° L10 R1/4"<span class="variation-badge ">+ € 2,93</span>
XWE-90° L10 R3/8"<span class="variation-badge ">+ € 14,74</span>
XWE-90° L10 R1/2"<span class="variation-badge ">+ € 4,04</span>
XWE-90° L12 R1/4"<span class="variation-badge ">+ € 1,44</span>
XWE-90° L12 R3/8"<span class="variation-badge ">+ € 4,95</span>
XWE-90° L12 R1/2"<span class="variation-badge ">+ € 17,47</span>
XWE-90° L15 R1/4"<span class="variation-badge ">+ € 29,07</span>
XWE-90° L15 R3/8"<span class="variation-badge ">+ € 3,47</span>
XWE-90° L15 R1/2"<span class="variation-badge ">+ € 7,43</span>
XWE-90° L18 R3/8"<span class="variation-badge ">+ € 20,14</span>
XWE-90° L18 R1/2"<span class="variation-badge ">+ € 8,66</span>
XWE-90° L18 R3/4"<span class="variation-badge ">+ € 12,36</span>
XWE-90° L22 R3/4"<span class="variation-badge ">+ € 31,11</span>
XWE-90° L28 R1"<span class="variation-badge ">+ € 16,63</span>
from
€ 7,02
incl. 19% VAT , plus
shipping costs
(DHL Standardversand)
Available immediately
x
This item has variations. Please select the requested variation.
Loading...
grant consent
Loading...
components are loading ...
Description
Reviews
Question about item
Artikelnummer:
Ausführung:
Rohranschluss:
Anschlussgewinde:
Einschraubgewinde:
Betriebsdruck:
40420102281
XWE-90° L06 R1/8"
L06
M12x1,5
BSPP keg. R1/8"-28
315 bar
40420102282
XWE-90° L06 R1/4"
L06
M12x1,5
BSPP keg. R1/4"-19
315 bar
40420102283
XWE-90° L06 R3/8"
L06
M12x1,5
BSPP keg. R3/8"-19
315 bar
40420102284
XWE-90° L08 R1/8"
L08
M14x1,5
BSPP keg. R1/8"-28
315 bar
40420102285
XWE-90° L08 R1/4"
L08
M14x1,5
BSPP keg. R1/4"-19
315 bar
40420102286
XWE-90° L08 R3/8"
L08
M14x1,5
BSPP keg. R3/8"-19
315 bar
40420102287
XWE-90° L08 R1/2"
L08
M14x1,5
BSPP keg. R1/2"-14
315 bar
40420102288
XWE-90° L10 R1/8"
L10
M16x1,5
BSPP keg. R1/8"-28
315 bar
40420102289
XWE-90° L10 R1/4"
L10
M16x1,5
BSPP keg. R1/4"-19
315 bar
40420102290
XWE-90° L10 R3/8"
L10
M16x1,5
BSPP keg. R3/8"-19
315 bar
40420102291
XWE-90° L10 R1/2"
L10
M16x1,5
BSPP keg. R1/2"-14
315 bar
40420102292
XWE-90° L12 R1/4"
L12
M18x1,5
BSPP keg. R1/4"-19
315 bar
40420102293
XWE-90° L12 R3/8"
L12
M18x1,5
BSPP keg. R3/8"-19
315 bar
40420102294
XWE-90° L12 R1/2"
L12
M18x1,5
BSPP keg. R1/2"-14
315 bar
40420102295
XWE-90° L15 R1/4"
L15
M22x1,5
BSPP keg. R1/4"-19
315 bar
40420102296
XWE-90° L15 R3/8"
L15
M22x1,5
BSPP keg. R3/8"-19
315 bar
40420102297
XWE-90° L15 R1/2"
L15
M22x1,5
BSPP keg. R1/2"-14
315 bar
40420102298
XWE-90° L18 R3/8"
L18
M22x1,5
BSPP keg. R3/8"-19
315 bar
40420102299
XWE-90° L18 R1/2"
L18
M22x1,5
BSPP keg. R1/2"-14
315 bar
40420102300
XWE-90° L18 R3/4"
L18
M22x1,5
BSPP keg. R3/4"-14
160 bar
40420102301
XWE-90° L22 R3/4"
L22
M30x2
BSPP keg. R3/4"-14
160 bar
40420102302
XWE-90° L28 R1"
L28
M36x2
BSPP keg. R1"-11
160 bar
Write the first review for this item and help others make a purchase decision!
Write a review
There are no reviews yet.
Contact data
First name
Last name
Company
- optional
E-Mail
Phone
- optional
Question about item
Your question
Please answer the question
×
Close
Submit question
Others also bought:
XWE-90° L10 N1/4"
€ 11,63
*
