Adjustable angle screw connection

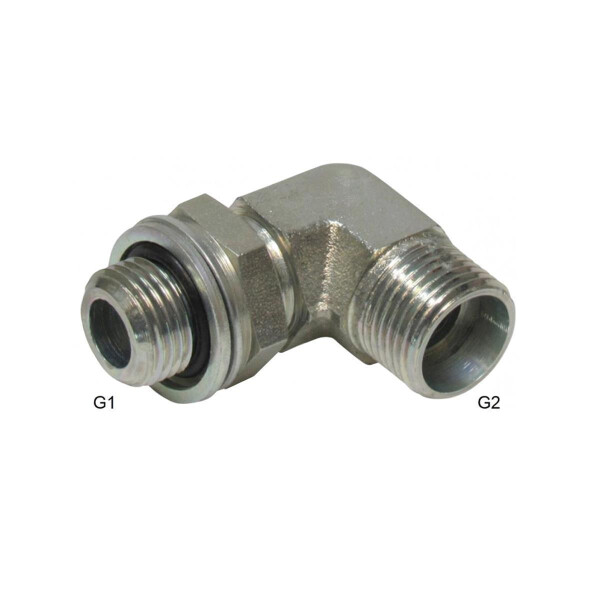

Einstellbare Winkel- Einschraubverschraubung XEWE-90° LM metrisch leicht mit metrischem Einschraubgewinde
Einstellbare Winkel- Einschraubverschraubung XEWE-90° LM metrisch leicht mit metrischem Einschraubgewinde
SKU:
40420101070
Category:
Adjustable angle screw connection
Einstellbare Winkel- Einschraubverschraubung XEWE-90° LM metrisch leicht mit metrischem Einschraubgewinde
Werkstoff:
Stahl
Ausführung:
XEWE-90° LM KM
Rohranschluss:
L06 bis L42
Rohranschlussgewinde G2:
M12x1,5 bis M52x2
Konus:
24°
Einschraubgewinde G1:
M10x1 bis M48x2 KM
Betriebsdruck:
160-315 bar
Dichtform:
Kammerring, O-Ring
Ausführung
XEWE-90° L06 M10x1 KM
XEWE-90° L08 M10x1 KM<span class="variation-badge ">+ € 18,86</span>
XEWE-90° L08 M12x1,5 KM<span class="variation-badge ">+ € 33,23</span>
XEWE-90° L08 M14x1,5 KM<span class="variation-badge ">+ € 19,46</span>
XEWE-90° L08 M18x1,5 KM<span class="variation-badge ">+ € 33,23</span>
XEWE-90° L10 M14x1,5 KM<span class="variation-badge ">+ € 7,14</span>
XEWE-90° L10 M18x1,5 KM<span class="variation-badge ">+ € 33,53</span>
XEWE-90° L10 M20x1,5 KM<span class="variation-badge ">+ € 36,77</span>
XEWE-90° L12 M14x1,5 KM<span class="variation-badge ">+ € 18,12</span>
XEWE-90° L12 M16x1,5 KM<span class="variation-badge ">+ € 6,24</span>
XEWE-90° L12 M18x1,5 KM<span class="variation-badge ">+ € 19,89</span>
XEWE-90° L15 M18x1,5 KM<span class="variation-badge ">+ € 11,17</span>
XEWE-90° L15 M22x1,5 KM<span class="variation-badge ">+ € 36,60</span>
XEWE-90° L15 M26x1,5 KM<span class="variation-badge ">+ € 69,43</span>
XEWE-90° L18 M22x1,5 KM<span class="variation-badge ">+ € 13,75</span>
XEWE-90° L18 M26x1,5 KM<span class="variation-badge ">+ € 72,80</span>
XEWE-90° L22 M26x1,5 KM<span class="variation-badge ">+ € 26,46</span>
XEWE-90° L22 M27x2 KM<span class="variation-badge ">+ € 59,95</span>
XEWE-90° L28 M33x2 KM<span class="variation-badge ">+ € 46,11</span>
XEWE-90° L35 M42x2 KM<span class="variation-badge ">+ € 99,05</span>
XEWE-90° L42 M48x2 KM<span class="variation-badge ">+ € 127,22</span>
from
€ 13,41
incl. 19% VAT , plus
shipping costs
(DHL Standardversand)
Available immediately
x
This item has variations. Please select the requested variation.
Loading...
grant consent
Loading...
components are loading ...
Description
Reviews
Question about item
Artikelnummer:
Ausführung:
Rohranschluss:
Rohranschlussgewinde G2:
Einschraubgewinde G1:
Betriebsdruck:
40420101071
XEWE-90° L06 M10x1 KM
L06
M12x1,5
M10x1 KM
315 bar
40420101072
XEWE-90° L08 M10x1 KM
L08
M14x1,5
M10x1 KM
315 bar
40420101073
XEWE-90° L08 M12x1,5 KM
L08
M14x1,5
M12x1,5 KM
315 bar
40420101074
XEWE-90° L08 M14x1,5 KM
L08
M14x1,5
M14x1,5 KM
315 bar
40420101075
XEWE-90° L08 M18x1,5 KM
L08
M14x1,5
M18x1,5 KM
315 bar
40420101076
XEWE-90° L10 M14x1,5 KM
L10
M16x1,5
M14x1,5 KM
315 bar
40420101077
XEWE-90° L10 M18x1,5 KM
L10
M16x1,5
M18x1,5 KM
315 bar
40420101078
XEWE-90° L10 M20x1,5 KM
L10
M16x1,5
M20x1,5 KM
315 bar
40420101079
XEWE-90° L12 M14x1,5 KM
L12
M18x1,5
M14x1,5 KM
315 bar
40420101080
XEWE-90° L12 M16x1,5 KM
L12
M18x1,5
M16x1,5 KM
315 bar
40420101081
XEWE-90° L12 M18x1,5 KM
L12
M18x1,5
M18x1,5 KM
315 bar
40420101082
XEWE-90° L15 M18x1,5 KM
L15
M22x1,5
M18x1,5 KM
250 bar
40420101083
XEWE-90° L15 M22x1,5 KM
L15
M22x1,5
M22x1,5 KM
250 bar
40420101084
XEWE-90° L15 M26x1,5 KM
L15
M22x1,5
M26x1,5 KM
250 bar
40420101085
XEWE-90° L18 M22x1,5 KM
L18
M26x1,5
M22x1,5 KM
160 bar
40420101086
XEWE-90° L18 M26x1,5 KM
L18
M26x1,5
M26x1,5 KM
160 bar
40420101087
XEWE-90° L22 M26x1,5 KM
L22
M30x2
M26x1,5 KM
160 bar
40420101088
XEWE-90° L22 M27x2 KM
L22
M30x2
M27x2 KM
160 bar
40420101089
XEWE-90° L28 M33x2 KM
L28
M36x2
M33x2KM
160 bar
40420101090
XEWE-90° L35 M42x2 KM
L35
M45x2
M42x2KM
160 bar
40420101091
XEWE-90° L42 M48x2 KM
L42
M52x2
M48x2KM
160 bar
Shipping weight:
0,05 kg
Item weight:
0,02
kg
Write the first review for this item and help others make a purchase decision!
Write a review
There are no reviews yet.
Contact data
First name
Last name
Company
- optional
E-Mail
Phone
- optional
Question about item
Your question
Please answer the question
×
Close
Submit question
Others also bought:
UEM L28
€ 8,36
*
USIT Z-M14
€ 1,37
*
XVET-L28
€ 62,82
*
XGE-L22R3/4"WD
€ 8,62
*
XEWE-90° L28 R1" KM
€ 60,15
*
VSTI-M22X1,5 WD
€ 7,74
*
