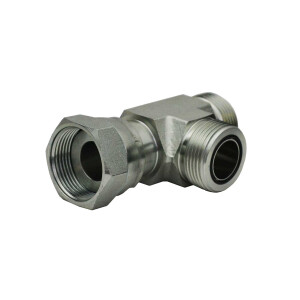

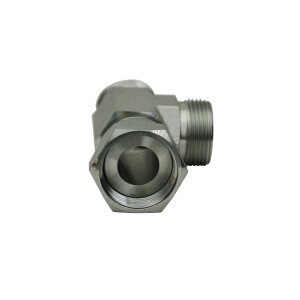

Einstellbare Hydraulik L Verschraubung ORFS EVL-AGO DO
Einstellbare Hydraulik L Verschraubung ORFS EVL-AGO DO
SKU:
40420013030
Category:
L- piece
Einstellbare Hydraulik L Verschraubung ORFS EVL-AGO DO
Werkstoff:
Stahl, verzinkt
Ausführung:
EVL-AGO DO
Anschlussgewinde:
9/16"-18UNF bis 1.11/16"-12UN
Anschlussgewinde in mm Ø:
14,25mm bis 42,80mm
Anschlussgewinde IG:
9/16"-18UNF bis 1.11/16"-12UN
Anschlussgewinde IG in mm Ø:
13mm bis 40,20mm
O-Ring Ø:
7,65x1,78mm bis 29,87x1,78mm
Betriebsdruck:
350-630 bar
Dichtform:
Flachdichtend, O-Ring
Ausführung
EVL- AGO9/16 DO9/16
EVL- AGO11/16 DO11/16<span class="variation-badge ">+ € 10,88</span>
EVL- AGO13/16 DO13/16<span class="variation-badge ">+ € 8,66</span>
EVL- AGO1 DO1<span class="variation-badge ">+ € 24,65</span>
EVL- AGO1.3/16 DO1.3/16<span class="variation-badge ">+ € 38,63</span>
EVL- AGO1.7/16 DO1.7/16<span class="variation-badge ">+ € 44,49</span>
EVL- AGO1.11/16 DO1.11/16<span class="variation-badge ">+ € 107,52</span>
from
€ 13,85
incl. 19% VAT , plus
shipping costs
(DHL Standardversand)
Available immediately
x
This item has variations. Please select the requested variation.
Loading...
grant consent
Loading...
components are loading ...
Description
Reviews
Question about item
Artikelnummer:
Ausführung:
Anschlussgewinde:
Anschlussgewinde in mm Ø:
Anschlussgewinde IG:
Anschlussgewinde IG in mm Ø:
O-Ring Ø:
Betriebsdruck:
40420013031
EVL- AGO9/16 DO9/16
9/16"-18UNF
14,25mm
9/16"-18UNF
13,00mm
7,65x1,78mm
630 bar
40420013032
EVL- AGO11/16 DO11/16
11/16"-16UN
17,40mm
11/16"-16UN
15,40mm
9,25x1,78mm
630 bar
40420013033
EVL- AGO13/16 DO13/16
13/16"-16UN
20,50mm
13/16"-16UN
18,60mm
12,42x1,78mm
630 bar
40420013034
EVL- AGO1 DO1
1"-14UNS
25,30mm
1"-14UNS
23,10mm
15,60x1,78mm
630 bar
40420013035
EVL- AGO1.3/16 DO1.3/16
1.3/16"-12UN
30,10mm
1.3/16"-12UN
27,50mm
18,77x1,78mm
420 bar
40420013036
EVL- AGO1.7/16 DO1.7/16
1.7/16"-12UN
36,40mm
1.7/16"-12UN
33,80mm
23,50x1,78mm
420 bar
40420013037
EVL- AGO1.11/16 DO1.11/16
1.11/16"-12UN
42,80mm
1.11/16"-12UN
40,20mm
29,87x1,78mm
350 bar
Write the first review for this item and help others make a purchase decision!
Write a review
There are no reviews yet.
Contact data
First name
Last name
Company
- optional
E-Mail
Phone
- optional
Question about item
Your question
Please answer the question
×
Close
Submit question
Others also bought:

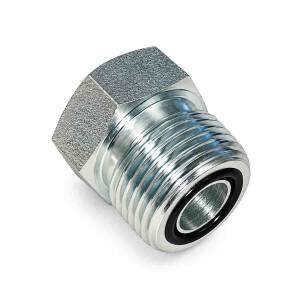

VS-O 13/16
