| Artikelnummer: |
Ausführung: |
DN: |
Für Rohr Ø in mm: |
Für Rohr Ø in Zoll: |
A: |
L1: |
H1: |
H2: |
Gewinde D: |
| 30620011051 |
RSTBLB Ø 10mm / R1/8" |
DN06 |
10mm |
R1/8" |
11mm |
17mm |
31mm |
19mm |
M6 |
| 30620011052 |
RSTBLB Ø 13,5mm / R1/4" |
DN08 |
13,5mm |
R1/4" |
14mm |
20mm |
34mm |
19mm |
M6 |
| 30620011053 |

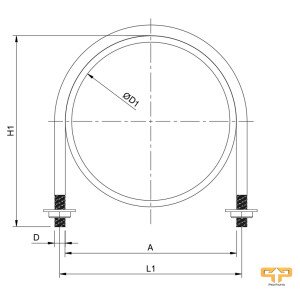

RSTBLB Ø 17,2mm / R3/8" |
DN10 |
17,2mm |
R3/8" |
18mm |
24mm |
37mm |
19mm |
M6 |
| 30620011054 |
RSTBLB Ø 21,3mm / R1/2" |
DN15 |
21,3mm |
R1/2" |
22mm |
28mm |
43mm |
25mm |
M6 |
| 30620011055 |
RSTBLB Ø 26,9mm / R3/4" |
DN20 |
26,9mm |
R1/4" |
27mm |
33mm |
47mm |
25mm |
M6 |
| 30620011056 |
RSTBLB Ø 33,7mm / R1" |
DN25 |
33,7mm |
R1" |
34mm |
40mm |
55mm |
25mm |
M6 |
| 30620011057 |
RSTBLB Ø 42,4mm / R1.1/4" |
DN32 |
42,4mm |
R1.1/4" |
43mm |
49mm |
63mm |
25mm |
M6 |
| 30620011058 |
RSTBLB Ø 48,3mm / R1.1/2" |
DN40 |
48,3mm |
R1.1/2" |
49mm |
57mm |
73mm |
30mm |
M8 |
| 30620011059 |
RSTBLB Ø 60,3mm / R2" |
Dn50 |
60,3mm |
R2" |
61mm |
69mm |
85mm |
30mm |
M8 |
| 30620011060 |
RSTBLB Ø 76,1mm / R2.1/2" |
DN65 |
76,1mm |
R2.1/2" |
77mm |
85mm |
101mm |
30mm |
M8 |
| 30620011061 |
RSTBLB Ø 88,9mm / R3" |
DN80 |
88,9mm |
R3" |
89mm |
97mm |
113mm |
30mm |
M8 |
| 30620011062 |
RSTBLB Ø 102mm / R3.1/2" |
DN90 |
102mm |
R3.1/2" |
102mm |
110mm |
130mm |
35mm |
M8 |
| 30620011063 |
RSTBLB Ø 114,3mm / R4" |
DN100 |
114,3mm |
R4" |
115mm |
123mm |
142mm |
35mm |
M8 |
| 30620011064 |
RSTBLB Ø 139,7mm / R5" |
DN125 |
139,7mm |
R5" |
140mm |
148mm |
169mm |
35mm |
M8 |
| 30620011065 |
RSTBLB Ø 168mm / R6" |
DN150 |
168mm |
R6" |
168mm |
178mm |
202mm |
45mm |
M10 |
| 30620011066 |
RSTBLB Ø 2,19mm / R8" |
DN200 |
219mm |
R8" |
220mm |
230mm |
254mm |
45mm |
M10 |
| 30620011067 |
RSTBLB Ø 273mm / R10" |
DN250 |
273mm |
R10" |
274mm |
284mm |
308mm |
45mm |
M10 |
| 30620011068 |
RSTBLB Ø 324mm / R12" |
DN300 |
324mm |
R12" |
324mm |
340mm |
368mm |
60mm |
M16 |
| 30620011069 |
RSTBLB Ø 356mm / R14" |
DN350 |
356mm |
R14" |
356mm |
372mm |
400mm |
60mm |
M16 |
| 30620011070 |
RSTBLB Ø 406,4mm / R16" |
DN400 |
406,4mm |
R16" |
408mm |
424mm |
452mm |
60mm |
M16 |
