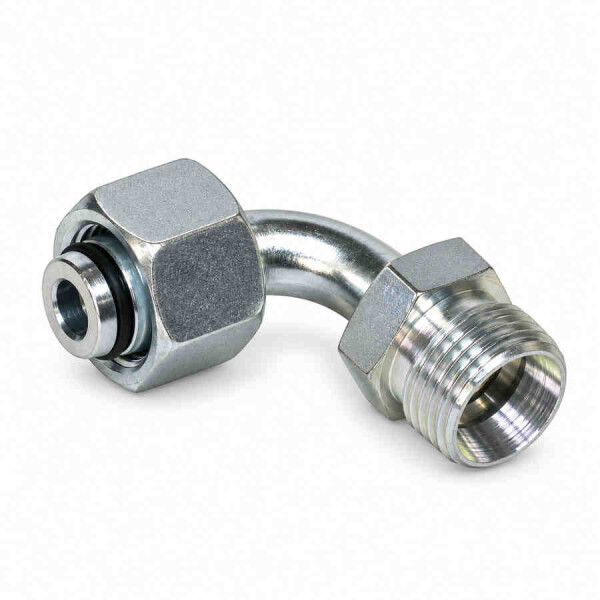

KOVO-90° L15/L15
SKU:
40420101265
Winkel- Verschraubung KOVO-90° L metrisch leicht
Werkstoff:
Stahl
Ausführung:
KOVO-90° L15/L15
Rohranschluss IG:
L15
Anschlussgewinde IG:
M22x1,5
Rohranschluss AG:
L15
Anschlussgewinde AG:
M22x1,5
Konus:
24°
Betriebsdruck:
315 bar
Ausführung
KOVO-90° L06/L06
KOVO-90° L08/L08
KOVO-90° L10/L10
KOVO-90° L12/L12
KOVO-90° L15/L15
KOVO-90° L18/L18
KOVO-90° L22/L22
KOVO-90° L28/L28
KOVO-90° L35/L35
KOVO-90° L42/L42
€ 38,97
incl. 19% VAT , plus
shipping costs
(DHL Standardversand)
Available immediately
Delivery time:
1 - 2 Workdays
(DE - int. shipments may differ)
Add to basket
Loading...
grant consent
Loading...
components are loading ...
Description
Reviews
Question about item
Artikelnummer:
Ausführung:
Rohranschluss IG:
Anschlussgewinde IG:
Rohranschluss AG:
Anschlussgewinde AG:
Betriebsdruck:
40420101261
KOVO-90° L06/L06
L06
M12x1,5
L06
M12x1,5
315 bar
40420101262
KOVO-90° L08/L08
L08
M14x1,5
L08
M14x1,5
315 bar
40420101263
KOVO-90° L10/L10
L10
M16x1,5
L10
M16x1,5
315 bar
40420101264
KOVO-90° L12/L12
L12
M18x1,5
L12
M18x1,5
315 bar
40420101265
KOVO-90° L15/L15
L15
M22x1,5
L15
M22x1,5
315 bar
40420101266
KOVO-90° L18/L18
L18
M26x1,5
L18
M26x1,5
315 bar
40420101267
KOVO-90° L22/L22
L22
M30x2
L22
M30x2
160 bar
40420101268
KOVO-90° L28/L28
L28
M36x2
L28
M36x2
160 bar
40420101269
KOVO-90° L35/L35
L35
M45x2
L35
M45x2
160 bar
40420101270
KOVO-90° L42/L42
L42
M52x2
L42
M52x2
160 bar
