3000 PSI
Homepage
Hydraulic
Hydraulic components
Hydraulic pumps
SAE closed flange
SAE closed counter flange
3000 PSI

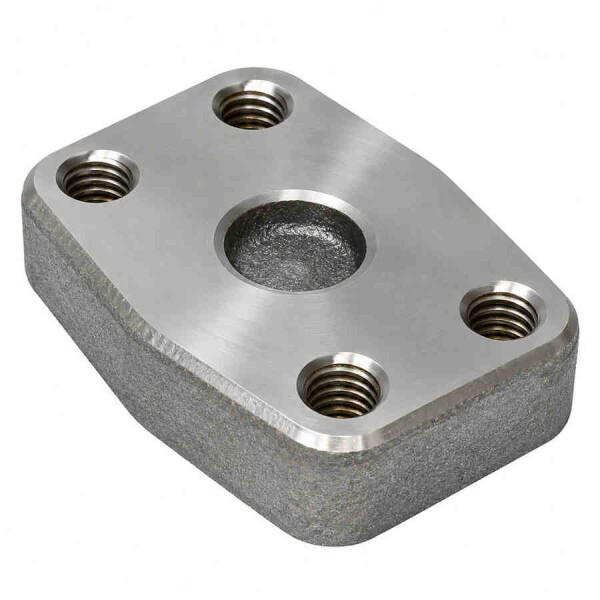

SAE Verschluss Gegenflansch SFL 3000 PSI
SAE Verschluss Gegenflansch SFL 3000 PSI
SKU:
4050704000
Category:
3000 PSI
SAE Verschluss Gegenflansch SFL 3000 PSI
Werkstoff:
Stahl
Ausführung:
VGF-SFL
Flansch:
1/2" bis 2"
Montagebohrung:
M8 bis M12
Betriebsdruck:
210-348 bar
Lieferumfang:
Im Lieferumfang sind keine Schrauben enthalten!
Ausführung
VGF-SFL 1/2"<span class="variation-badge ">+ € 0,26</span>
VGF-SFL 3/4"
VGF-SFL 1"
VGF-SFL 1.1/4"<span class="variation-badge ">+ € 6,17</span>
VGF-SFL 1.1/2"<span class="variation-badge ">+ € 12,17</span>
VGF-SFL 2"<span class="variation-badge ">+ € 14,59</span>
from
€ 25,65
incl. 19% VAT , plus
shipping costs
(DHL Standardversand)
Available immediately
x
This item has variations. Please select the requested variation.
Loading...
grant consent
Loading...
components are loading ...
Description
Reviews
Question about item
Artikelnummer:
Ausführung:
Flansch:
Montagebohrung:
Betriebsdruck:
A in mm:
B in mm:
C in mm:
D in mm:
4050704001
VGF-SFL 1/2"
1/2"
M8
348 bar
57mm
38mm
47mm
17,5mm
4050704002
VGF-SFL 3/4"
3/4"
M10
348 bar
66mm
47,6mm
49mm
22,2mm
4050704003
VGF-SFL 1"
1"
M10
348 bar
71mm
52,4mm
53mm
26,2mm
4050704004
VGF-SFL 1.1/4"
1.1/4"
M10
278 bar
80mm
58,7mm
69mm
30,2mm
4050704005
VGF-SFL 1.1/2"
1.1/2"
M12
210 bar
95mm
70mm
77mm
35,7mm
4050704006
VGF-SFL 2"
2"
M12
210 bar
103mm
77,8mm
89mm
42,9mm
