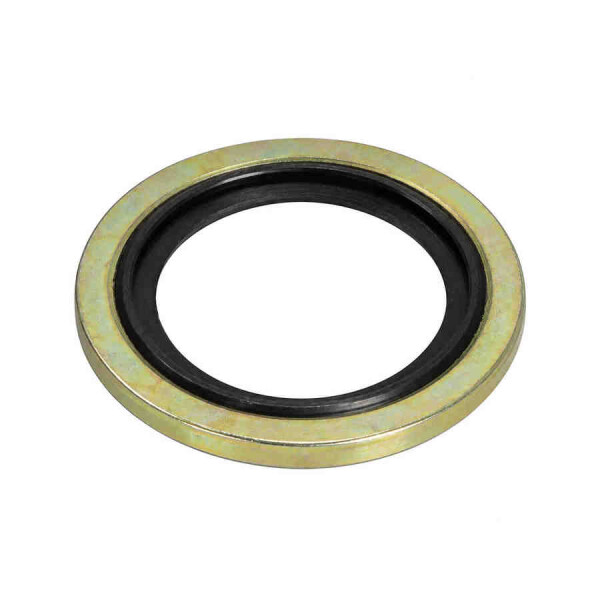

USIT- Ring zentriert für metrisches Gewinde
USIT Z-M22
SKU:
40420022759
Category:
Accessories
USIT- Ring zentriert für metrisches Gewinde
Werkstoff:
Stahl
Ausführung:
USIT Z-M22
Gewinde:
M22
Innen Ø in mm:
22,7mm
Außen Ø in mm:
30mm
Dicke in mm:
2mm
Ausführung
USIT Z-M5
USIT Z-M6
USIT Z-M8
USIT Z-M10
USIT Z-M12
USIT Z-M14
USIT Z-M16
USIT Z-M18
USIT Z-M22
USIT Z-M24
USIT Z-M26
USIT Z-M33
€ 1,79
incl. 19% VAT , plus
shipping costs
(DHL Standardversand)
Available immediately
Delivery time:
1 - 2 Workdays
(DE - int. shipments may differ)
Add to basket
Loading...
grant consent
Loading...
components are loading ...
Description
Reviews
Question about item
Artikelnummer:
Ausführung:
Gewinde:
Innen Ø in mm:
Außen Ø in mm:
Dicke in mm:
40420022751
USIT Z-M5
M5
5,7mm
9mm
1mm
40420022752
USIT Z-M6
M6
6,7mm
11mm
1mm
40420022753
USIT Z-M8
M8
8,7mm
14mm
1mm
40420022754
USIT Z-M10
M10
10,7mm
16,08mm
1,5mm
40420022755
USIT Z-M12
M12
12,7mm
19mm
1,5mm
40420022756
USIT Z-M14
M14
14,7mm
22mm
1,5mm
40420022757
USIT Z-M16
M16
16,7mm
24mm
1,5mm
40420022758
USIT Z-M18
M18
18,7mm
26mm
1,5mm
40420022759
USIT Z-M22
M22
22,7mm
30mm
2mm
40420022760
USIT Z-M24
M24
24,7mm
32mm
2mm
40420022761
USIT Z-M26
M26
27,05mm
34,93mm
2mm
40420022762
USIT Z-M33
M33
33,89mm
42,8mm
3,2mm
