Homepage
Hydraulic
Hydraulic fittings
Metric heavy
T- Shape

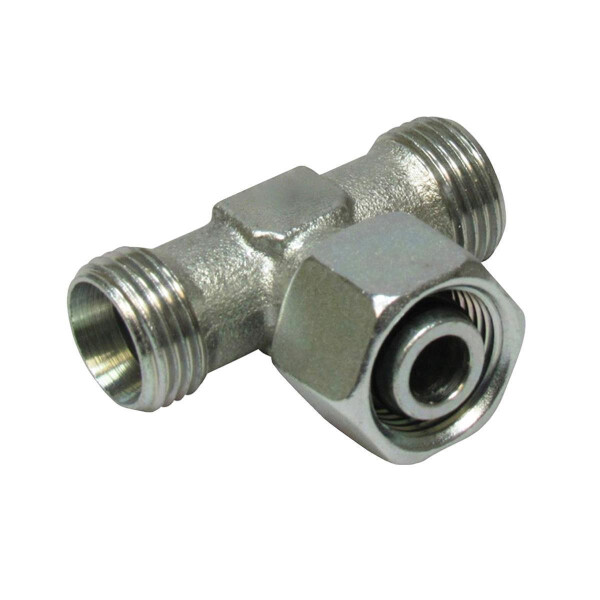

Adjustable T-shaped fitting
Einstellbare T- Verschraubung XVETO-S metrisch schwer
Einstellbare T- Verschraubung XVETO-S metrisch schwer
SKU:
40420021840
Category:
Adjustable T-shaped fitting
Einstellbare T- Verschraubung XVETO-S metrisch schwer
Werkstoff:
Stahl
Ausführung:
XVETO-S
Rohranschluss:
S06 bis S38
Rohranschlussgewinde:
M14x1,5 bis M52x2
Konus:
24°
Betriebsdruck:
250-630 bar
Dichtform:
O-Ring
Ausführung
XVETO-S06
XVETO-S08<span class="variation-badge ">+ € 1,67</span>
XVETO-S10<span class="variation-badge ">+ € 3,07</span>
XVETO-S12<span class="variation-badge ">+ € 5,49</span>
XVETO-S14<span class="variation-badge ">+ € 53,18</span>
XVETO-S16<span class="variation-badge ">+ € 12,92</span>
XVETO-S20<span class="variation-badge ">+ € 30,16</span>
XVETO-S25<span class="variation-badge ">+ € 50,60</span>
XVETO-S30<span class="variation-badge ">+ € 68,31</span>
XVETO-S38<span class="variation-badge ">+ € 122,96</span>
from
€ 15,82
incl. 19% VAT , plus
shipping costs
(DHL Standardversand)
Available immediately
x
This item has variations. Please select the requested variation.
Loading...
grant consent
Loading...
components are loading ...
Description
Reviews
Question about item
Artikelnummer:
Ausführung:
Rohranschluss:
Rohranschlussgewinde:
Betriebsdruck:
40420021841
XVETO-S06
S06
M14x1,5
630 bar
40420021842
XVETO-S08
S08
M16x1,5
630 bar
40420021843
XVETO-S10
S10
M18x1,5
630 bar
40420021844
XVETO-S12
S12
M20x1,5
630 bar
40420021845
XVETO-S14
S14
M22x1,5
630 bar
40420021846
XVETO-S16
S16
M24x1,5
400 bar
40420021847
XVETO-S20
S20
M30x2
400 bar
40420021848
XVETO-S25
S25
M36x2
400 bar
40420021849
XVETO-S30
S30
M42x2
250 bar
40420021850
XVETO-S38
S38
M52x2
250 bar
