Fittings
Straight
Straight adapter fittings

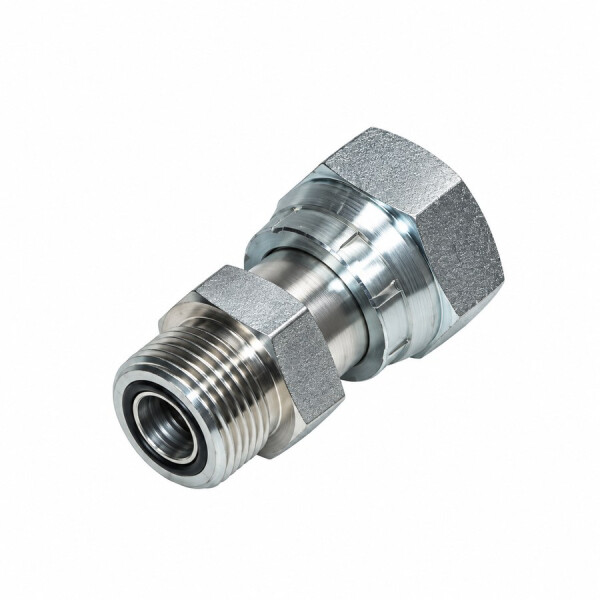

Gerade Adapter Verschraubung ORFS GAVSK-AGO IGO mit Sechskant, Überwurfmutter und amerikanisches UN/UNF Gewinde
Gerade Adapter Verschraubung ORFS GAVSK-AGO IGO mit Sechskant, Überwurfmutter und amerikanisches UN/UNF Gewinde
SKU:
20340015100
Category:
Straight adapter fittings
Gerade Adapter Verschraubung ORFS GAVSK-AGO IGO mit Sechskant, Überwurfmutter und amerikanisches UN/UNF Gewinde
Werkstoff:
Stahl
Ausführung:
GAVSK-AGO IGO
Anschlussgewinde (AG):
9/16"-18 UNF bis 1.7/16"-12 UN
AG in mm Ø:
14,25mm bis 36,40mm
Anschlussgewinde (IG):
11/16"-16 UN bis 1.11/16"-12 UN
IG in mm Ø:
15,40mm bis 40,20mm
Betriebsdruck:
350-630 bar
Dichtform:
Flachdichtung, O-Ring
Ausführung
GAVSK- AGO9/16 IGO11/16
GAVSK- AGO9/16 IGO13/16<span class="variation-badge ">+ € 6,30</span>
GAVSK- AGO9/16 IGO1<span class="variation-badge ">+ € 14,40</span>
GAVSK- AGO9/16 IGO1.3/16<span class="variation-badge ">+ € 16,57</span>
GAVSK- AGO11/16 IGO13/16<span class="variation-badge ">+ € 5,37</span>
GAVSK- AGO11/16 IGO1<span class="variation-badge ">+ € 12,46</span>
GAVSK- AGO11/16 IGO1.3/16<span class="variation-badge ">+ € 14,73</span>
GAVSK- AGO13/16 IGO1<span class="variation-badge ">+ € 9,50</span>
GAVSK- AGO13/16 IGO1.3/16<span class="variation-badge ">+ € 14,40</span>
GAVSK- AGO13/16 IGO1.7/16<span class="variation-badge ">+ € 21,21</span>
GAVSK- AGO1 IGO1.3/16<span class="variation-badge ">+ € 18,31</span>
GAVSK- AGO1 IGO1.7/16<span class="variation-badge ">+ € 21,37</span>
GAVSK- AGO1.3/16 IGO1.7/16<span class="variation-badge ">+ € 20,88</span>
GAVSK- AGO1.3/16 IGO1.11/16<span class="variation-badge ">+ € 54,75</span>
GAVSK- AGO1.7/16 IGO1.11/16<span class="variation-badge ">+ € 33,99</span>
from
€ 9,65
incl. 19% VAT , plus
shipping costs
(DHL Standardversand)
Available immediately
x
This item has variations. Please select the requested variation.
Loading...
grant consent
Loading...
components are loading ...
Description
Reviews
Question about item
Artikelnummer:
Ausführung:
Anschlussgewinde (AG):
AG in mm Ø:
Anschlussgewinde (IG):
IG in mm Ø:
Betriebsdruck:
20340015101
GAVSK- AGO9/16 IGO11/16
9/16"-18 UNF
14,25mm
11/16"-16 UN
15,40mm
630 bar
20340015102
GAVSK- AGO9/16 IGO13/16
9/16"-18 UNF
14,25mm
13/16"-16 UN
18,60mm
630 bar
20340015103
GAVSK- AGO9/16 IGO1
9/16"-18 UNF
14,25mm
1"-14 UNS
23,10mm
420 bar
20340015104
GAVSK- AGO9/16 IGO1.3/16
9/16"-18 UNF
14,25mm
1.3/16"-12 UN
27,50mm
420 bar
20340015105
GAVSK- AGO11/16 IGO13/16
11/16"-16 UN
17,40mm
13/16"-16 UN
18,60mm
630 bar
20340015106
GAVSK- AGO11/16 IGO1
11/16"-16 UN
17,40mm
1"-14 UNS
23,10mm
420 bar
20340015107
GAVSK- AGO11/16 IGO1.3/16
11/16"-16 UN
17,40mm
1.3/16"-12 UN
27,50mm
420 bar
20340015108
GAVSK- AGO13/16 IGO1
13/16"-16 UN
20,50mm
1"-14 UNS
23,10mm
420 bar
20340015109
GAVSK- AGO13/16 IGO1.3/16
13/16"-16 UN
20,50mm
1.3/16"-12 UN
27,50mm
420 bar
20340015110
GAVSK- AGO13/16 IGO1.7/16
13/16"-16 UN
20,50mm
1.7/16"-12 UN
33,80mm
420 bar
20340015111
GAVSK- AGO1 IGO1.3/16
1"-14 UNS
23,50mm
1.3/16"-12 UN
27,50mm
420 bar
20340015112
GAVSK- AGO1 IGO1.7/16
1"-14 UNS
23,50mm
1.7/16"-12 UN
33,80mm
420 bar
20340015113
GAVSK- AGO1.3/16 IGO1.7/16
1.3/16"-12 UN
30,10mm
1.7/16"-12 UN
33,80mm
420 bar
20340015114
GAVSK- AGO1.3/16 IGO1.11/16
1.3/16"-12 UN
30,10mm
1.11/16"-12 UN
40,20mm
350 bar
20340015115
GAVSK- AGO1.7/16 IGO1.11/16
1.7/16"-12 UN
36,40mm
1.11/16"-12 UN
40,20mm
350 bar
Write the first review for this item and help others make a purchase decision!
Write a review
There are no reviews yet.
Contact data
First name
Last name
Company
- optional
E-Mail
Phone
- optional
Question about item
Your question
Please answer the question
×
Close
Submit question
Others also bought:

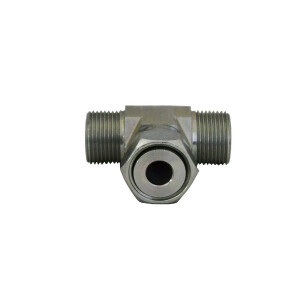

EVT- AGO11/16 DO11/16
